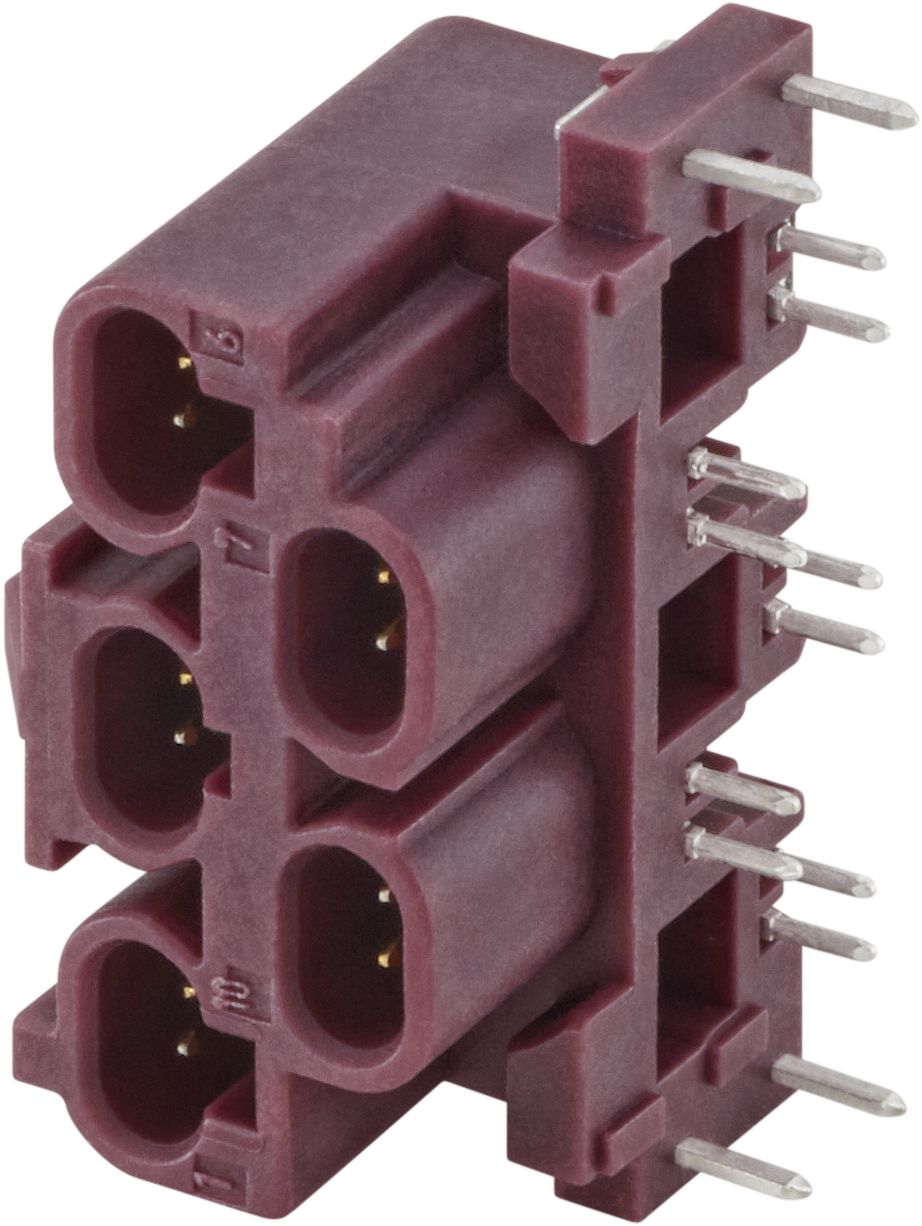

The Rosenberger E7S21E-40MX5-D is a right angle plug designed for PCB mounting, belonging to the MTD series. This RF connector features a differential impedance of 100 Ohms ± 5% and supports a frequency range from DC to 1.0 GHz.
Key electrical specifications include a maximum power current of 1.5 A DC, a working voltage of 60 V DC, and an insulation resistance of ≥ 1x10³ MΩ. The signal contact resistance is ≤ 10 mΩ. The connector is built for durability with a minimum of 25 mating cycles.
Environmental considerations include an operating temperature range of -40°C to +105°C. The connector is supplied in tape & reel packaging, with a standard package quantity of 185 pieces. The housing is constructed from PA6-GF33, and the contact pin is tin bronze with gold plating for the interface and tin plating for the PCB.
This component is suitable for applications requiring reliable RF signal transmission on printed circuit boards. Its right-angle configuration facilitates space-saving designs in compact electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 Ω ± 5% at 500 ps rise time.
DC to 1.0 GHz.
Maximum power current is 1.5 A DC.
Working voltage is 60 V DC; test voltage is 250 V rms.
PC-Board SMD with Pin-in-Paste backend.
-40°C to +105°C.
Minimum 25 mating cycles.
