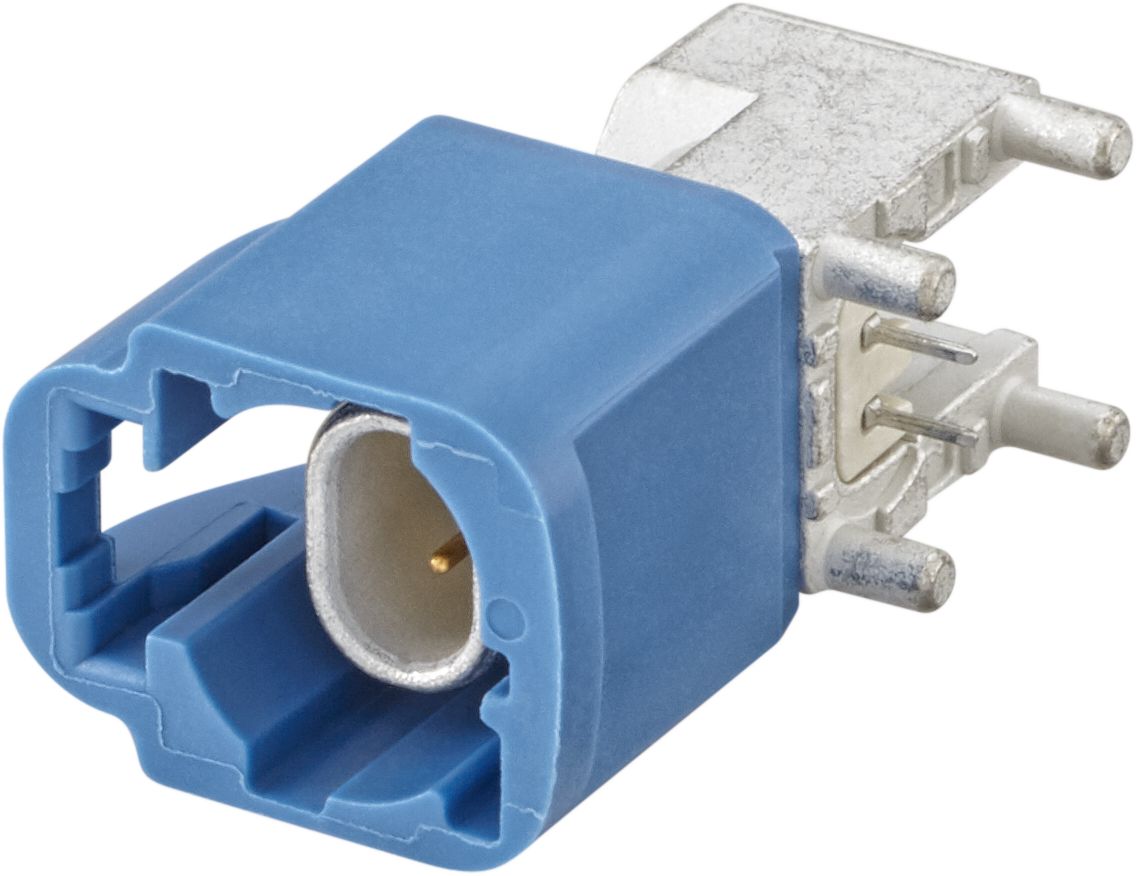

The Rosenberger E6S20A-40MT5-C is a right angle plug connector belonging to the H-MTD® series, specifically designed for Printed Circuit Board (PCB) mounting. It features a nominal impedance of 100 Ohms and supports a frequency range from DC up to 10 GHz.
This connector is constructed with a brass signal contact plated with gold over nickel on the interface side and tin over nickel on the PCB side. The outer contact is made of zinc alloy with tin plating over nickel. The dielectric material is LCP, and the housing is made of HTN. It is rated for a working voltage of up to 60 V DC and a power current of up to 1.5 A DC.
Mechanically, the E6S20A-40MT5-C offers a minimum of 25 mating cycles, an engagement force of less than or equal to 20 N, and a latch retention force of at least 110 N. It operates within a temperature range of -40 °C to +105 °C.
The connector is supplied in tape and reel packaging, with a standard package quantity of 225 pieces. It is suitable for SMD Pin-in-Paste mounting on PCBs. The part is identified by its coding color C, which corresponds to blue.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the E6S20A-40MT5-C connector is 100 Ohms.
The E6S20A-40MT5-C operates from DC to 10 GHz.
The maximum working voltage is 60 V DC.
The connector supports a minimum of 25 mating cycles.
The operating temperature range is -40 °C to +105 °C.
It is packaged in tape and reel, with 225 pieces per standard package.
This connector supports PC-Board SMD Pin-in-Paste mounting.
