| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Differential Travel | |
| Indicator | |
| Ingress Protection | |
| Load Current | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Response Frequency | |
| Sensing Distance | |
| Sensor Type | |
| Shielding | |
| Termination Style | |
| Voltage |

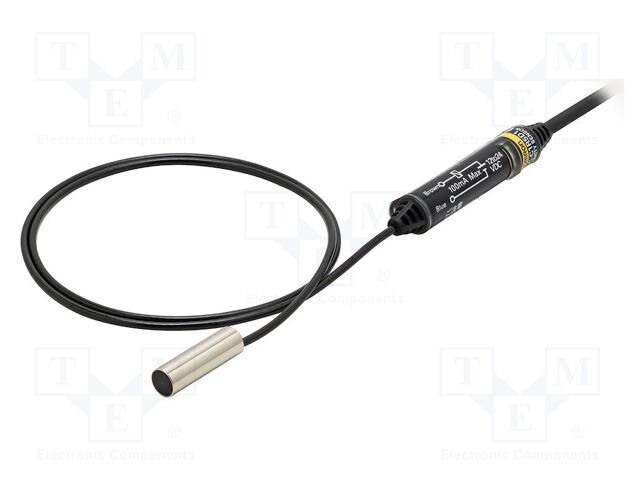

The Omron E2EC-C1R5D2 is a subminiature inductive proximity sensor designed for long-distance detection. It features a shielded sensor head with a 5.4mm diameter, suitable for embedding in metal.
This sensor offers a sensing distance of 1.5mm with a set distance range of 0 to 1.05mm. It operates with a 10-30VDC supply voltage and provides a 2-wire Normally Closed (NC) output configuration. The response frequency is 1 kHz, and it has a maximum load current of 100mA.
The E2EC-C1R5D2 is built for industrial environments, featuring an IP67 rating for protection against dust and water. Its operating temperature range is -25 to 70°C. The sensor has a brass body and a 2-meter lead length for flexible installation. It is designed for embedded mounting.
This sensor is suitable for detecting ferrous metals, with a reduced sensing distance for non-ferrous metals. The differential travel is a maximum of 10% of the sensing distance.
