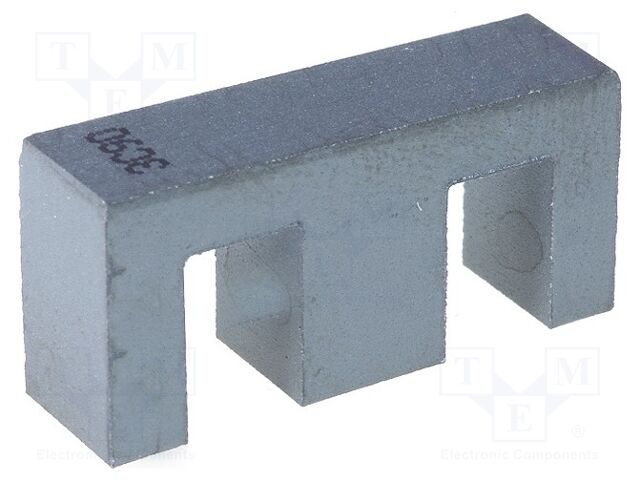

E20/10/6-3C90 The Ferroxcube E20/10/6-3C90 is a ferrite core with a material designation of 3C90. It offers an inductance factor of 1450nH.
Mfr Part #:

E20/10/6-3C90

Available from 1 distributors
Mfr Name: Ferroxcube
Ferroxcube
The Ferroxcube E20/10/6-3C90 is a ferrite core with a material designation of 3C90. It offers an inductance factor of 1450nH.
✓ Total Stock: 1,000 pcs
$ Price Range: $0.52

E20/10/6-3C90 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

E20/10/6-3C90 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Type
Lead Spacing
Material
View Similar Products (0)

E20/10/6-3C90 Description

Short technical summary and product information.

The Ferroxcube E20/10/6-3C90 is a ferrite core designed for various electronic applications. It features a 3C90 material composition, providing specific magnetic properties. The core has an inductance factor of 1450nH and an effective core volume of 1490mm³ with an effective cross-sectional area of 32mm².



Key dimensions include Dimension A at 20mm, Dimension B at 10.2mm, Dimension C at 5.9mm, Dimension D at 7mm, Dimension E at 14.1mm, and Dimension F at 5.9mm. The component has a gross weight of 3.75g.



This ferrite core is suitable for use in power supply circuits, transformers, and chokes where magnetic flux control is required. Its physical dimensions and material properties make it a component for designs needing specific inductance values and core characteristics.

E20/10/6-3C90 Quick Information

Product Type: Ferrite Core
Canonical Name: Ferroxcube E20/10/6-3C90 Ferrite Core
Subcategory: Fixed Inductors

E20/10/6-3C90 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

E20/10/6-3C90 Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

E20/10/6-3C90 Features

  • Ferrite core with 3C90 material.
  • Inductance factor of 1450nH.
  • Effective core volume of 1490mm³.
  • Key dimensions: A: 20mm, B: 10.2mm.
  • Gross weight is 3.75g.

E20/10/6-3C90 Applications

  • Used in transformer designs.
  • Suitable for inductor applications.
  • Component for power supply circuits.
  • Applicable for magnetic flux control.

E20/10/6-3C90 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the Ferroxcube E20/10/6-3C90?

The inductance factor is 1450nH.

What material is the Ferroxcube E20/10/6-3C90 core made of?

The core is made of 3C90 material.

What are the main dimensions of the E20/10/6-3C90 ferrite core?

Dimension A is 20mm, Dimension B is 10.2mm, Dimension C is 5.9mm, Dimension D is 7mm, Dimension E is 14.1mm, and Dimension F is 5.9mm.

What is the effective core volume?

The effective core volume is 1490mm³.

What is the effective core cross-section?

The effective core cross-section is 32mm².
