| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
110 pcs
|
110 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Features | |
| Illumination | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

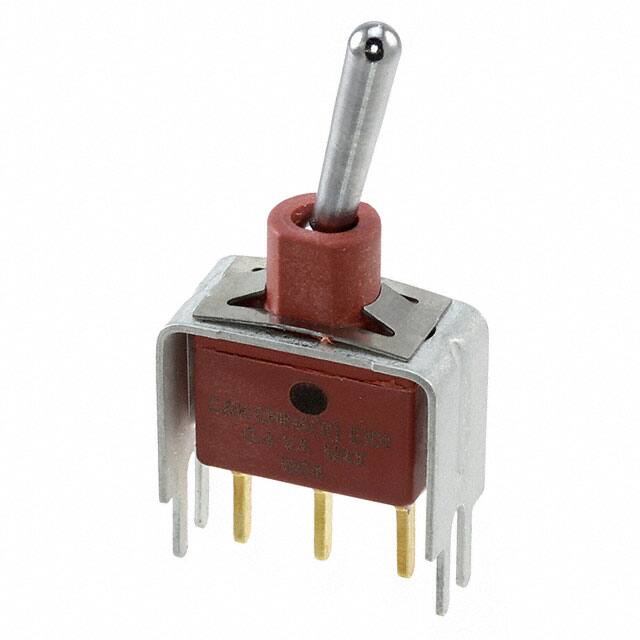

The C&K Components E101SD1V3BE is a sealed miniature toggle switch from the E Series. It offers an SPDT circuit configuration with an On-On function and a non-illuminated actuator.
Key electrical specifications include a contact rating of 0.4VA at 20V AC/DC. The switch is designed for durability with epoxy sealed terminals and a glass-filled nylon 6/6 case and bushing that is flame retardant and heat stabilized (UL 94V-0). It meets an IP57 degree of protection, indicating it is dust protected and waterproof against temporary immersion.
This toggle switch is suitable for through-hole mounting and features a PC pin termination style. The operating temperature range is -30°C to 85°C. Typical applications for this series include telecommunications, instrumentation, and medical equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.4VA maximum at 20V AC or DC.
The operating temperature range is -30°C to 85°C.
The ingress protection rating is IP57, meaning it is dust protected and waterproof against temporary immersion.
The RoHS status is RoHS3 Compliant.
