E101MD1AV2BE

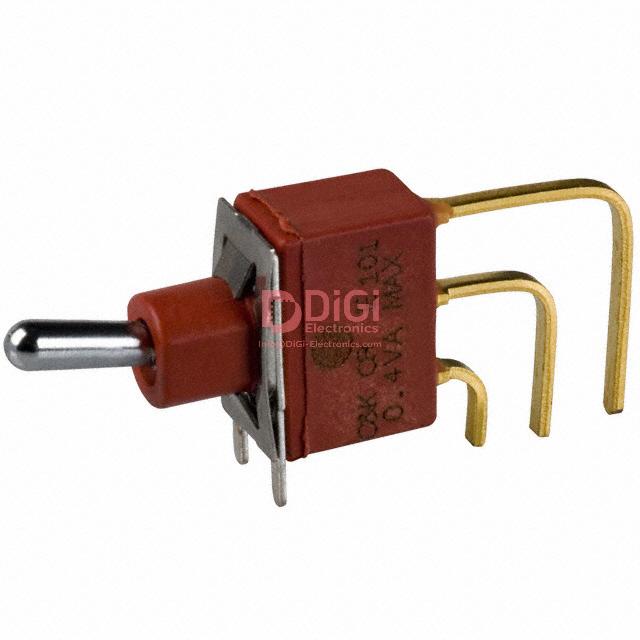

The E101MD1AV2BE is a toggle switch manufactured by C&K Components. It is rated for a maximum contact rating of 0.4 VA at 20 V. The switch features a single-pole double-throw (SPDT) configuration, suitable for switching applications requiring low power. Its design includes a brass actuator with chrome plating and a glass-filled nylon case that is flame retardant and heat stabilized. The switch's contact material is copper alloy with gold over nickel plating, ensuring good electrical conductivity and corrosion resistance.

This toggle switch is designed for use in electronic and electrical systems where reliable switching at low voltages and currents is required. It has an ingress protection rating of IP57, making it dust protected and waterproof. The switch can operate within a temperature range of -30°C to 85°C, making it suitable for various environmental conditions. It is mounted via a bushing with an internal O-ring seal, ensuring environmental sealing.

The switch's electrical life is rated at 40,000 cycles for models E1XX and E2XX, and 30,000 cycles for E3XX models. It has a contact resistance below 10 milliohms and insulation resistance of at least 1 GΩ. The dielectric strength is rated at 1000 Vrms at sea level. Solderability testing confirms compliance with MIL-STD-202F and EIA standards, with a 1-hour steam aging process.
