| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

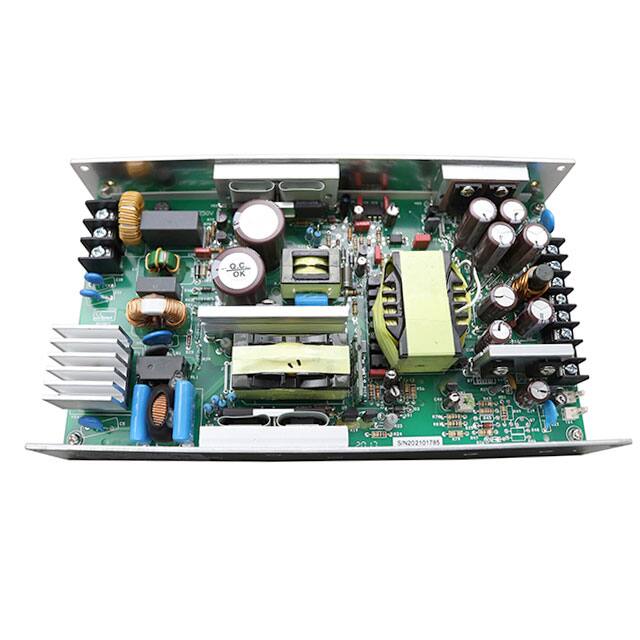

The Tri-Mag, LLC DZ300-7EU is a 300W AC/DC power supply designed for ITE (Commercial) applications. It features an open frame construction and chassis mount type, with dimensions of 9.00" L x 5.00" W x 1.60" H.
This converter provides dual outputs: 12V at 25A and 5V at 2A. It accepts a wide input voltage range of 90-264 VAC and operates at frequencies from 47-63 Hz. Key electrical features include active PFC and universal input, with an efficiency typically between 80% and 90%. Protection features include auto-recovery for overload and short circuit conditions, and latch-off for overvoltage.
The operating temperature range is 0°C to 70°C with derating. The unit is designed with free air convection cooling for 300W operation, or 18 CFM for 360W operation. Compliance includes FCC "B", EN55022 "B", EN61000-3-2 class D, and various EN61000-4 standards, along with UL, CSA, and TUV safety certifications.
This model is RoHS3 Compliant, REACH Unaffected, and has an MSL of 1 Unlimited.
The DZ300-7EU provides a 12V output at 25A and a 5V output at 2A.
The input voltage range is 90 to 264 VAC.
The power output is 300W, with a potential for 360W under forced air cooling.
The dimensions are 9.00 inches long by 5.00 inches wide by 1.60 inches high.
The operating temperature range is 0°C to 70°C, with derating above 50°C.
