| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

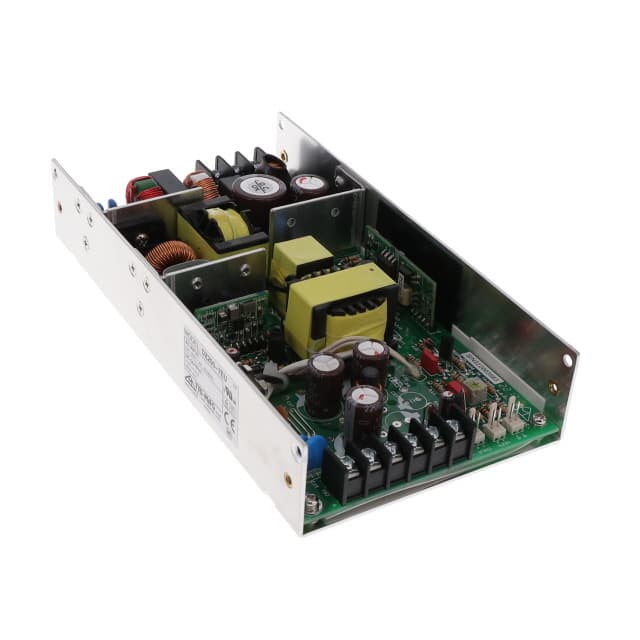

The Tri-Mag, LLC DZ200-7EU is a 200W AC/DC power supply with an open frame configuration, suitable for chassis mounting. It operates with a wide input voltage range of 90 to 264 VAC and features active Power Factor Correction (PFC) and universal input capabilities.
This converter provides a single 12V output with a current rating of 17A, delivering a total power of 200W. Its dimensions are 8.00" L x 4.20" W x 1.50" H (203.2mm x 106.7mm x 38.10mm), fitting within 1U constraints. The operating temperature range is from 0°C to 70°C with derating.
Designed for ITE (Commercial) applications, the DZ200-7EU meets various safety and EMI standards, including UL 60950-1, CSA 22.2 #234, TUV EN60950-1, EN55022 Class B, and EN61000-3-2 Class D. It utilizes terminal blocks for AC input and DC output connections and includes features like auto-recovery for overload and short circuit protection.
The input voltage range is 90 to 264 VAC.
It provides a single 12V output with a current rating of 17A.
The dimensions are 203.2mm x 106.7mm x 38.10mm.
The operating temperature range is 0°C to 70°C with derating.
Yes, it is RoHS3 Compliant.
