| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

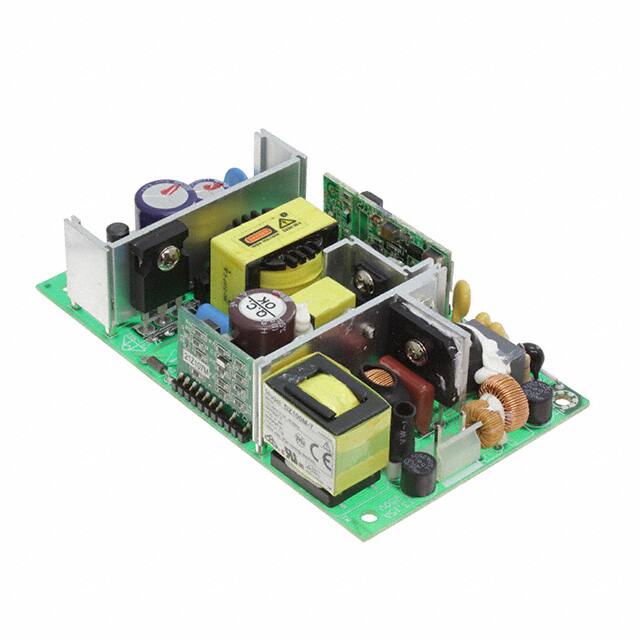

The DZ100M-7 from Tri-Mag, LLC is an AC/DC converter designed for various applications, including medical use. This open frame unit offers a power output of 100W, with a higher rating of 130W under forced air conditions, and a maximum current of 12A.
It features a universal input voltage range of 90 to 264 VAC and boasts an efficiency of 90%. The converter includes Power Factor Correction (PFC) and a universal input capability, making it versatile for global use. Its operating temperature range is from -20°C to 70°C, with derating applied at higher temperatures.
Designed for chassis mounting, the DZ100M-7 has dimensions of 127.0mm x 76.2mm x 27.1mm. It is approved by CB and CE agencies, indicating compliance with international safety and performance standards. The unit provides a single output and is RoHS3 compliant.
The DZ100M-7 converter has a power output of 100W, which can be increased to 130W with forced air.
The input voltage range for the DZ100M-7 is 90 to 264 VAC.
The maximum output current for the DZ100M-7 is 12A.
The dimensions of the DZ100M-7 converter are 127.0mm in length, 76.2mm in width, and 27.1mm in height.
The operating temperature range for the DZ100M-7 is -20°C to 70°C, with derating applied.
The DZ100M-7 is RoHS3 compliant.
The Moisture Sensitivity Level (MSL) for the DZ100M-7 is 1 Unlimited.
