| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

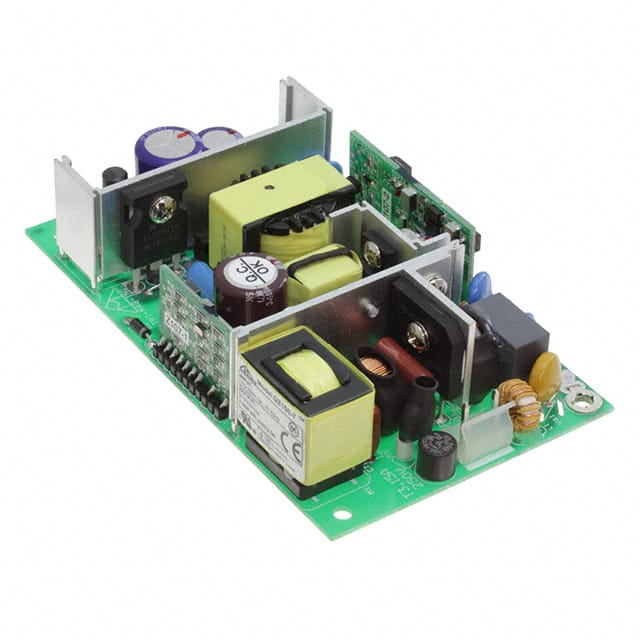

The Tri-Mag, LLC DZ100-7 is a 100W AC DC converter from the DZ100 series, designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90 to 264 VAC and a frequency of 47 to 63 Hz, offering a power factor greater than 0.95.
This open frame converter provides a single output with a current rating of 9A and a power output of 100W. It features essential protections like Overvoltage (Latch Off), Overload, and Short Circuit (Auto Recovery). The operating temperature range is 0°C to 70°C, with free air convection cooling for 100W loads.
Designed for chassis mounting, the DZ100-7 has dimensions of 127.0mm x 76.2mm x 30.0mm. It includes Molex connectors for AC input, DC output, and remote sense. Compliance includes EN55022 Class B and FCC Docket Class B for EMI, and EN61000-3-2 Class D for harmonics.
The input voltage range is 90-264 VAC at 47-63 Hz.
The operating temperature range is 0°C to 70°C with derating.
Dimensions are 127.0 x 76.2 x 30.0 mm (5 x 3 x 1.18 inches) with chassis mount.
Free air convection cooling for 100W; forced air cooling at 18 CFM required for 130W.
Typical efficiency is 85% to 90%.
Overvoltage protection (latch off), overload protection (auto recovery), and short circuit protection (auto recovery).
AC input: Molex 5277-02A or equivalent. DC output: Molex 5273 or equivalent. Remote sense: Molex 5045-02A or equivalent.
