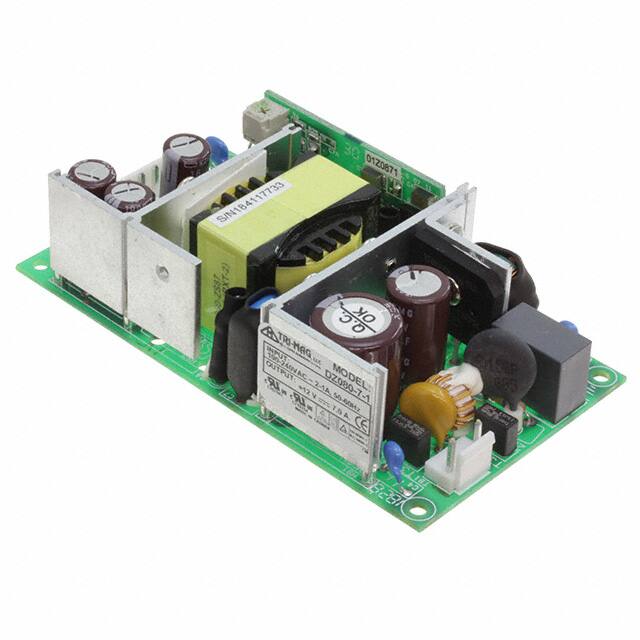

The Tri-Mag, LLC DZ080-7-1 is an 85W open-frame AC/DC converter designed for ITE (Commercial) applications. It features a universal input voltage range of 90 to 264 VAC and operates with a frequency of 47 to 63 Hz.
This converter provides a single output with a current rating of 7A and a power output of 85W. It boasts a typical efficiency of 82% and includes essential protections such as overvoltage (latch off), overload, and short circuit protection, all with auto-recovery.
The operating temperature range is 0°C to 70°C, with derating above 50°C. Cooling is achieved through free air convection. The unit is designed in compliance with UL 60950-1, UL 60601-1, CSA 22.2 #601-1, #60950-1, and EN60601-1 standards, with EMI compliance to EN55022 “B” and EN55011 “B”.
Mechanically, the DZ080-7-1 has dimensions of 114.3mm x 63.5mm x 30.0mm (4.50" x 2.50" x 1.18"). It is designed for chassis mounting and features JST B2P3-VH for AC input and JST B6P-VH for DC output connectors. The mounting holes are spaced at 55.88mm x 106.68mm (2.2" x 4.2").
The input voltage range is 90 to 264 VAC.
The maximum output current is 7A.
The operating temperature range is 0°C to 70°C.
It includes overvoltage protection (latch off), overload protection, and short circuit protection, all with auto-recovery.
The dimensions are 114.3mm x 63.5mm x 30.0mm.
