| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

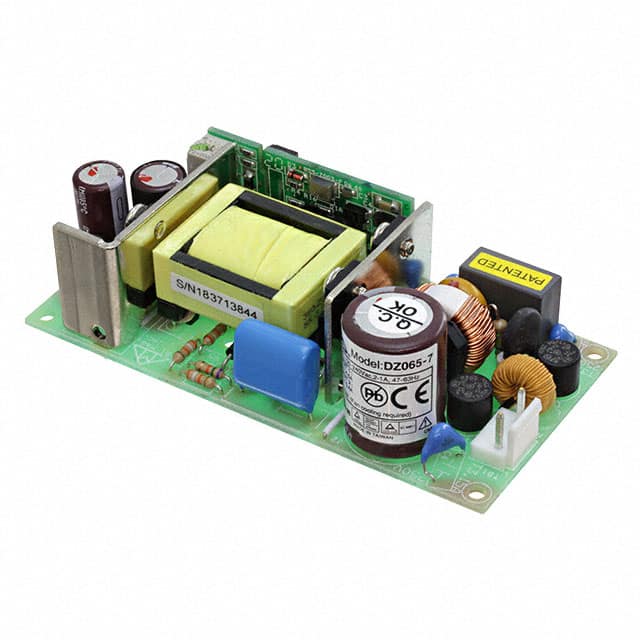

The Tri-Mag, LLC DZ065-7 is an open-frame AC/DC power supply designed for universal input applications. It operates with an input voltage range of 90 to 264 VAC and a frequency of 47 to 63 Hz, making it suitable for global use.
This converter delivers a single output of 12V at 4.6A, providing a total power of 55W. Key electrical specifications include an efficiency of 85% typical, line regulation of ±0.5%, and load regulation of ±0.5%. It also features overvoltage protection with a latch-off mechanism and auto-recovery for overload and short-circuit conditions.
The unit has a compact size of 101.6mm x 50.8mm x 28.0mm and is designed for chassis mounting. It utilizes JST connectors for both AC input (B2P3-VH or equivalent) and DC output (B4P-VH or equivalent). The operating temperature range is 0°C to 70°C, with cooling provided by free air convection.
The input voltage range is 90 to 264 VAC.
The operating temperature range is 0°C to 70°C with derating.
The mounting type is chassis mount.
It provides a nominal +12V output at 4.6 A, totaling 55W.
It includes overvoltage protection (latch off), overload and short circuit protection (auto recovery).
The dimensions are 101.6 mm x 50.8 mm x 28.0 mm (4" x 2" x 1.2").
