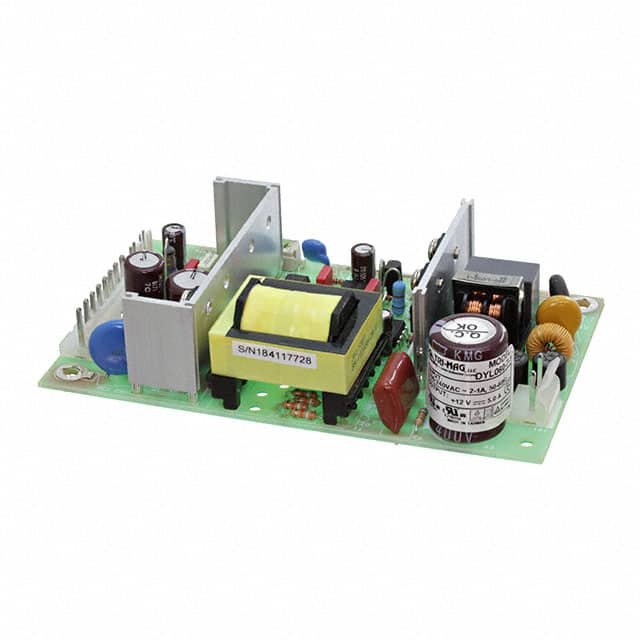

The Tri-Mag, LLC DYL060-7-1 is a 60 Watt AC/DC power supply designed for ITE (Commercial) applications. This open frame converter operates with a universal input voltage from 90 to 264 VAC and a frequency range of 47 to 63 Hz. It provides a single output with a current rating of 5A.
Key electrical specifications include an efficiency range of 75% to 86%, a holdup time greater than 16ms at 115VAC, and auto-recovery for overload and short circuit protection. The operating temperature range is 0°C to 70°C, with derating above 50°C. Storage temperature ranges from -40°C to 85°C.
This power supply features a compact size of 76.2mm x 127mm x 30mm (3" x 5" x 1.18") and a wattage density of 3.1W/in³. It is designed for chassis mounting with specific mounting hole dimensions. Connectors include Molex 5277-2 for AC input and Molex 5273-8 for DC output, along with additional connectors for LED, FAN, and Remote Sense functions.
The DYL060-7-1 series is designed in compliance with UL 60950-1, UL 60601-1, CSA 22.2 #60950-1, #601.1, EN60950-1, and EN60601-1 standards. It also meets EMI standards EN55022 Class B and EN55011 Class B, and EMS standards EN61000-4-2, -3, -4, -5, -6, -8, -11.
90-264VAC.
12V at 5A.
Open frame with chassis mount.
0°C to 70°C with derating above 50°C.
Overvoltage latch-off, overload and short circuit auto recovery.
76.2mm x 127mm x 30mm (3" x 5" x 1.18").
