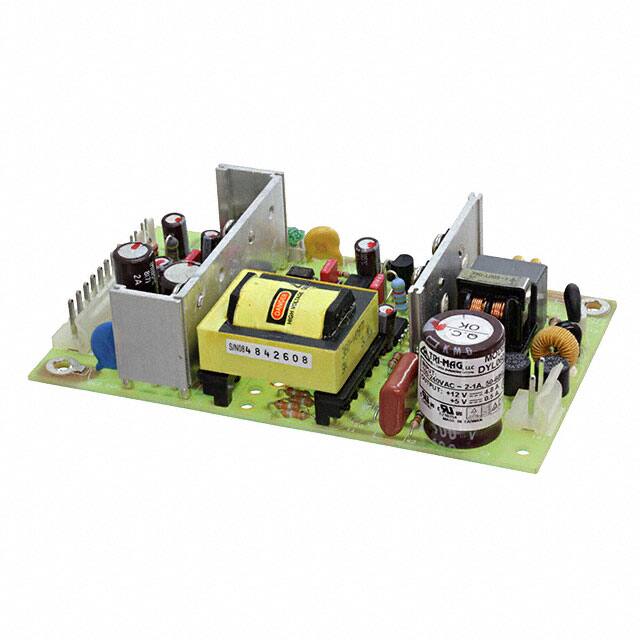

The Tri-Mag, LLC DYL060-7 is part of the DYL060 series, offering a 60 Watt power supply in an open frame, chassis mount package. This AC/DC converter accepts a universal input voltage from 90VAC to 264VAC and provides a 5V output with a current rating of 500 mA. It operates with an efficiency range of 75% to 86% and features auto-recovery for overload and short circuit protection.
The physical dimensions are 127.0mm x 76.2mm x 30.0mm (5.00" x 3.00" x 1.18"), resulting in a wattage density of 3.1W/in³. The operating temperature range is 0°C to 70°C, with derating above 50°C. Cooling is achieved through free air convection. The converter is designed for ITE (Commercial) applications and includes features like universal input and multiple outputs.
Compliance includes UL 60950-1, UL 60601-1, CSA 22.2 #60950-1, 601.1, EN60950-1, and EN60601-1. EMI characteristics meet EN55022 Class B, EN55011 Class B, and FCC Docket Class B standards, while EMS compliance is met per EN61000-4-2, -3, -4, -5, -6, -8, -11. The unit has an earth leakage of 300µA Max @ 240VAC and a holdup time of greater than 16ms at 115VAC.
The input voltage range is 90VAC to 264VAC.
The output voltage is 5V and the output current is 500mA.
The operating temperature range is 0°C to 70°C with derating.
It offers overvoltage protection (latch off), overload protection (auto recovery), and short circuit protection (auto recovery).
The efficiency ranges from 75% to 86%.
The mounting type is chassis mount.
The dimensions are 127.0mm by 76.2mm by 30.0mm.
