| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

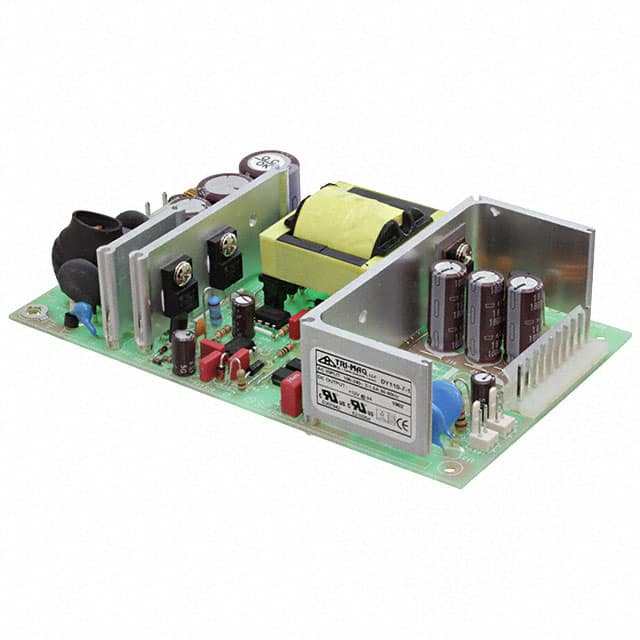

The Tri-Mag, LLC DY110-7-1 is a 110-watt AC/DC power supply designed for ITE (Commercial) applications. This open frame converter operates with a universal input voltage range from 90 to 264 VAC and a frequency of 47 to 63 Hz.
Key electrical specifications include an output current of 9A and a power rating of 110W. The unit offers protection features such as auto-recovery for overload and short circuit conditions, and latch-off for overvoltage. It operates within a temperature range of 0°C to 70°C with derating above 50°C, and storage temperatures from -40°C to 85°C.
Designed for chassis mounting, this power supply measures 152.4mm x 88.9mm x 36.1mm. Cooling is achieved through free air convection. The DY110-7-1 complies with various standards including UL 60950-1, UL 60601-1, CSA 22.2 #60950-1, 601.1, EN60950-1, and EN60601-1, as well as EMI standards EN55022 "B" and EN55011 "B".
90 to 264 VAC.
0°C to 70°C with derating above 50°C.
Chassis mount, open frame, 152.4mm x 88.9mm x 36.1mm.
110W, 12V, 9A.
Overvoltage latch off, overload auto recovery, short circuit auto recovery.
EN55022 Class B and EN55011 Class B.
78% to 87% at rated load and 115VAC.
