| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Height | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

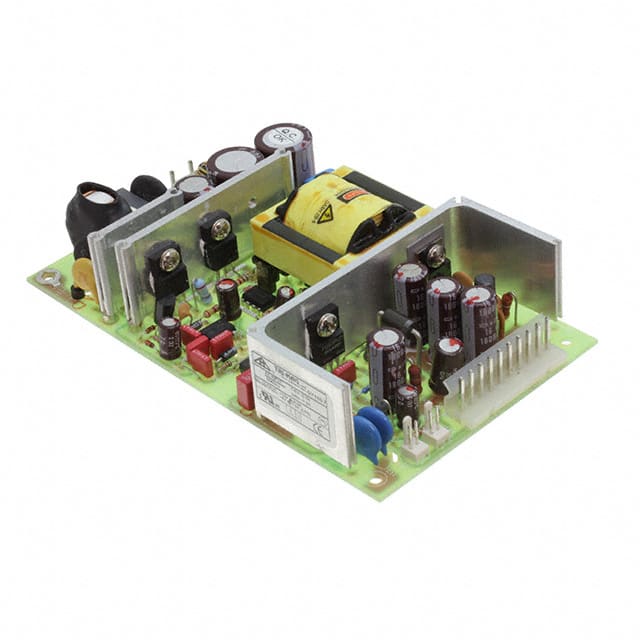

The Tri-Mag, LLC DY110-7 is an open-frame, chassis-mount AC/DC converter designed for ITE (Commercial) applications. This 110W power supply operates with a universal input voltage from 90VAC to 264VAC and a frequency range of 47Hz to 63Hz.
Key electrical specifications include a 5V output with a current rating of 1A, delivering a total power of 110W. The efficiency ranges from 78% to 87% at rated load and 115Vac input. It offers protection features such as auto-recovery for overload and short circuits, and overvoltage protection with a latch-off type.
The unit measures 152.4mm x 88.9mm x 36.1mm (6.00" x 3.50" x 1.42") and has a wattage density of 3.8W/in³. Mounting is facilitated by holes spaced at 77.5mm x 141mm (3.05" x 5.55"). The operating temperature range is 0°C to 70°C, with derating above 50°C, and storage temperature ranges from -40°C to 85°C. Cooling is achieved through free air convection.
Compliance includes EN55022 Class B and EN55011 Class B for EMI, and various EN61000 standards for EMS and harmonics. Connectors for AC input, DC output, LED, and FAN are specified as Molex types.
The input voltage range is 90VAC to 264VAC.
The DY110-7 provides a 5V output at 1A.
The maximum power output is 110W.
The operating temperature range is 0°C to 70°C.
The DY110-7 uses chassis mount.
