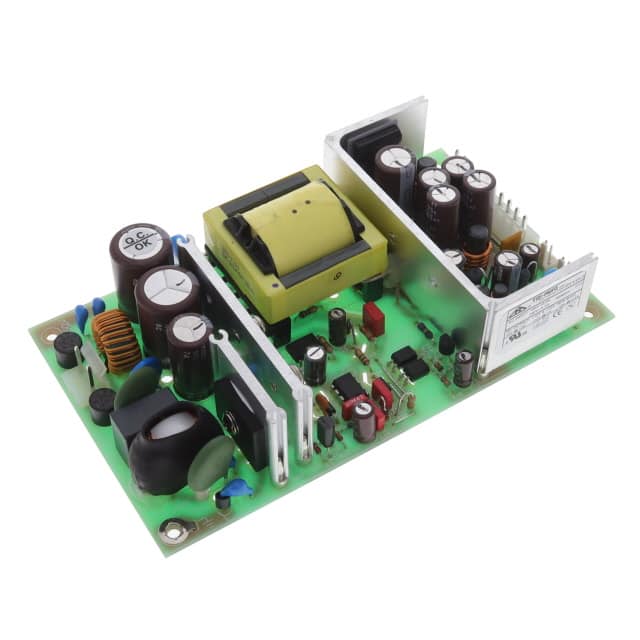

The Tri-Mag, LLC DY110-2 is a 110 Watt AC/DC power supply designed for versatile applications. This open frame converter operates with a universal input voltage range of 90VAC to 264VAC and a frequency of 47Hz to 63Hz.
Key electrical specifications include a power output of 110W, a wattage density of 3.8W/in³, and multiple outputs including 5V and +/-12V. It offers protection features such as auto-recovery for overload and short circuits, and a latch-off type overvoltage protection.
Designed for industrial and commercial applications, the DY110-2 operates within a temperature range of 0°C to 70°C, with derating above 50°C. It utilizes free air convection for cooling. The unit measures 152.4mm x 88.9mm x 36.1mm and is designed for chassis mounting with specific mounting hole dimensions.
Compliance includes EMI standards like EN55022 "B" and FCC docket class "B", along with EMS and harmonics compliance. The power supply is designed in full compliance with UL and CSA safety standards.
90VAC to 264VAC.
0°C to 70°C with derating.
Open frame, chassis mount.
-12V at 500mA with a total power of 110W.
Overvoltage protection (latch off), overload protection (auto recovery), short circuit protection (auto recovery).
78% to 87% at rated load and 115Vac.
152.4mm x 88.9mm x 36.1mm.
