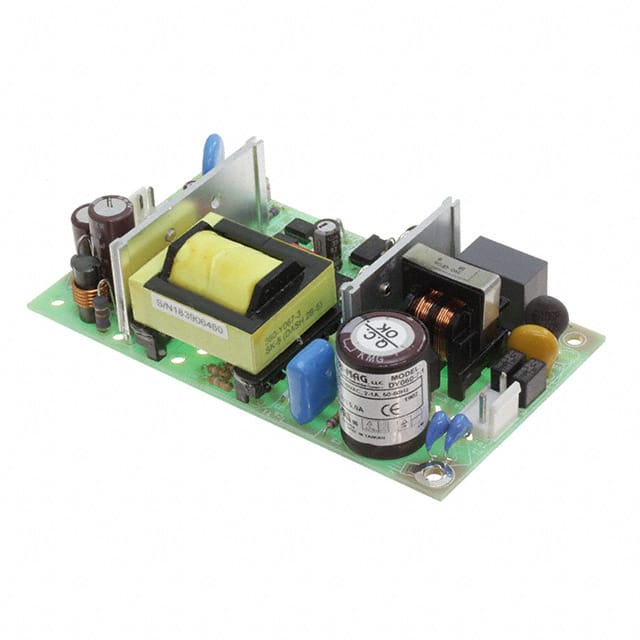

The Tri-Mag, LLC DY060-7-1 is part of the DY060 series of universal input, multiple output power supplies. This specific model is a 60 Watt power supply with a compact size of 2.5" x 4.5" and a wattage density of 4.2W/in³.
Key electrical specifications include a wide input voltage range of 90 to 264 VAC and an input frequency range of 47 to 63 Hz. It provides a single output with a current rating of 5A and a power output of 60W. The efficiency ranges from 78% to 87%.
Thermal specifications include an operating temperature range of 0°C to 70°C with derating above 50°C, and a storage temperature range of -40°C to 85°C. Cooling is achieved through free air convection. The unit features auto-recovery for overload and short circuit protection, and a latch-off type for overvoltage protection.
Mechanically, this converter is designed for chassis mounting and has dimensions of 114.3mm x 63.5mm x 30.0mm (4.50" x 2.50" x 1.18"). It utilizes a JST B3P-VH connector for AC input and a JST B4P-VH connector for DC output, or equivalent. Mounting holes are spaced at 53.5mm x 104.3mm (2.1" x 4.1").
90 to 264 VAC.
0°C to 70°C with derating.
Chassis mount.
Yes, latch off type.
Free air convection.
78% to 87%.
114.3mm x 63.5mm x 30.0mm.
