| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Dimensions | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

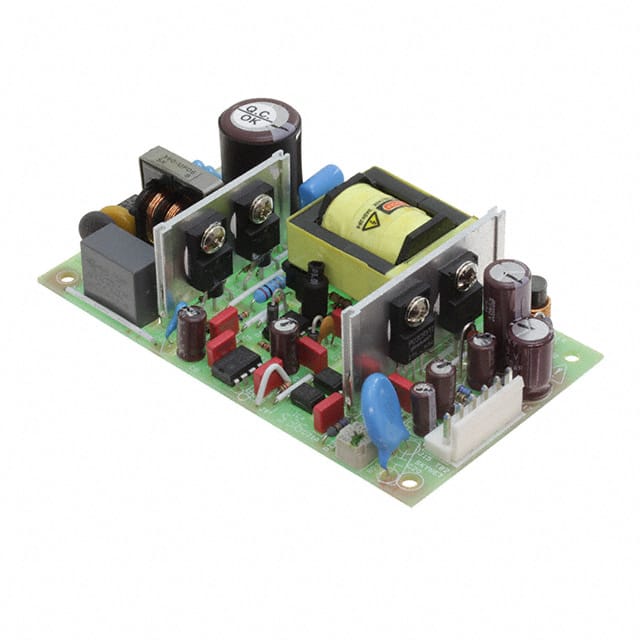

The Tri-Mag, LLC DY060-7 is an open-frame AC/DC converter designed for commercial ITE applications. It features a universal input voltage range of 90 to 264 VAC and provides a total output power of 60W. This model offers dual outputs, specifically 12V and 5V, with a current rating of 5A for the 12V output and 500mA for the 5V output.
With dimensions of 114.3mm x 63.5mm x 30.0mm, it is designed for chassis mounting and operates with free air convection cooling. The converter boasts an efficiency of 78% to 87% and includes auto-recovery for overload and short circuit protection. Its operating temperature range is 0°C to 70°C with derating above 50°C, and it has a hold-up time of over 16ms at 115VAC.
Key electrical specifications include an input frequency of 47-63Hz and an inrush current of less than 30A at 115VAC and 25°C. It also features overvoltage protection set to latch off and an earth leakage of less than 300µA at 240VAC.
The input voltage range is 90 VAC to 264 VAC.
0°C to 70°C with derating above 50°C.
It is an open frame converter with chassis mount.
The available specifications indicate a 12V output at 5A and a 5V output at 500mA.
Overvoltage protection (latch off), overload protection (auto recovery), and short circuit protection (auto recovery).
Efficiency ranges from 78% to 87%.
Free air convection cooling.
