| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| DC Resistance | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Max) | |
| Insulation Resistance | |
| Mass | |
| Mounting Type | |
| Operating Temperature | |
| Rated Power | |
| Rated Voltage | |
| Storage Temperature | |
| Withstand Voltage |

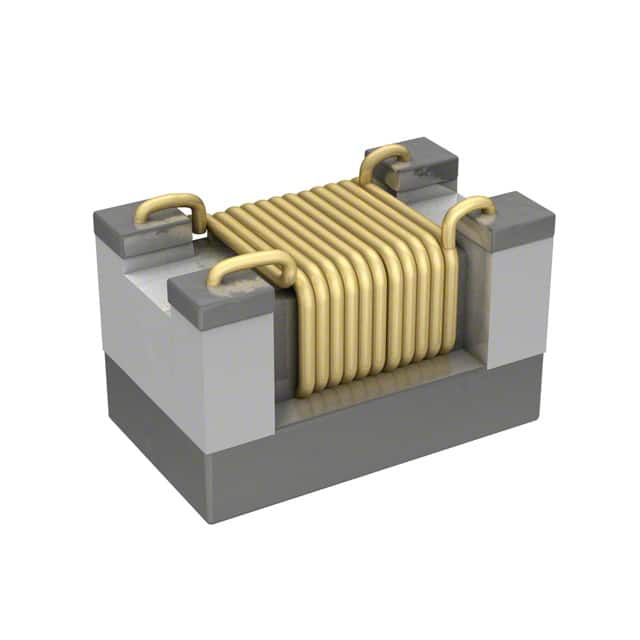

The Murata DXW21BN7511SL is a micro chip transformer functioning as a balun. It operates within a frequency range of 1 GHz to 1.5 GHz, offering a characteristic impedance of 75 Ohms on both ports.
This component is designed for surface mount applications and comes in an 0805 (2012 Metric) package. Key electrical specifications include a maximum insertion loss of 1.4dB and a DC resistance of 0.59 Ohms. It is rated for 20V DC with a withstand voltage of 50V DC and a rated power of 27dBm.
The operating and storage temperature range for the DXW21BN7511SL is -40 to +85 °C. Its compact size and surface mount capability make it suitable for integration into various RF circuits where impedance matching and signal balancing are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency range is 1 GHz to 1.5 GHz.
The impedance is 75 Ohms on both ports.
The maximum insertion loss is 1.4dB.
It is supplied in an 0805 (2012 Metric) package.
The operating temperature range is -40 to +85 °C.
Yes, it is RoHS3 compliant.
The Moisture Sensitivity Level is 1.
