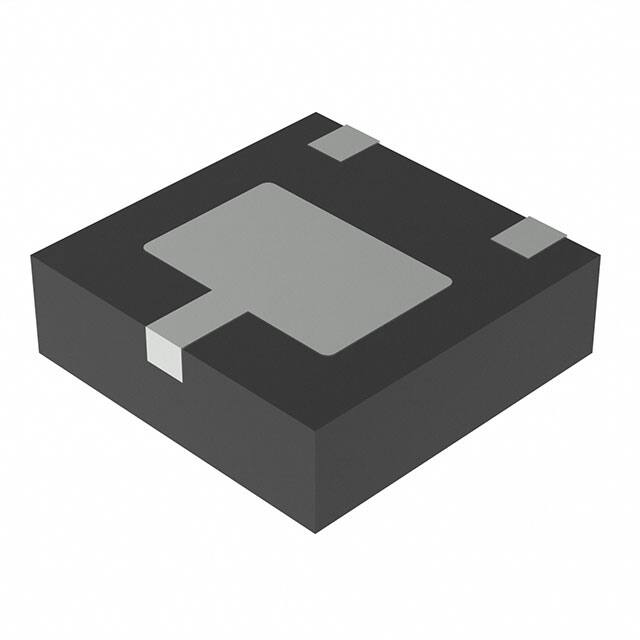

The DXTN10060DFJBWQ-7 is a 60V NPN low saturation transistor from Diodes Incorporated, designed for high efficiency power switching applications. It offers a continuous collector current of 4A and a low saturation voltage of 100mV maximum at 1A, with an equivalent on-resistance of 60mΩ typical. The device features a DC current gain (hFE) of 340 minimum at 200mA, 2V, and a transition frequency of 125MHz.
This transistor is housed in a compact W-DFN2020-3 surface mount package with a low profile of 0.6mm height, making it suitable for space-constrained designs. It is rated for operation from -55°C to 175°C junction temperature, with a maximum power dissipation of 1.8W. The package features sidewall tin plating for wettable flanks, enabling automated optical inspection (AOI).
Typical applications include automotive systems, MOSFET gate driving, DC-DC converters, motor control, and power switches. The device is AEC-Q101 qualified, PPAP capable, and manufactured in IATF16949:2016 certified facilities, making it suitable for automotive and industrial applications requiring stringent quality control.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.90 | $0.90 |
| 10+ | $0.56 | $0.56 |
| 100+ | $0.36 | $0.36 |
| 500+ | $0.28 | $0.28 |
| 1,000+ | $0.25 | $0.25 |
| 3,000+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
W-DFN2020-3 surface mount package.
-55°C to 175°C (junction temperature).
Yes, it is RoHS3 compliant, totally lead-free.
4A continuous.
100mV maximum at 1A collector current.
340 minimum at 200mA, 2V.
Yes, it is AEC-Q101 qualified, PPAP capable, and manufactured in IATF16949:2016 certified facilities.
