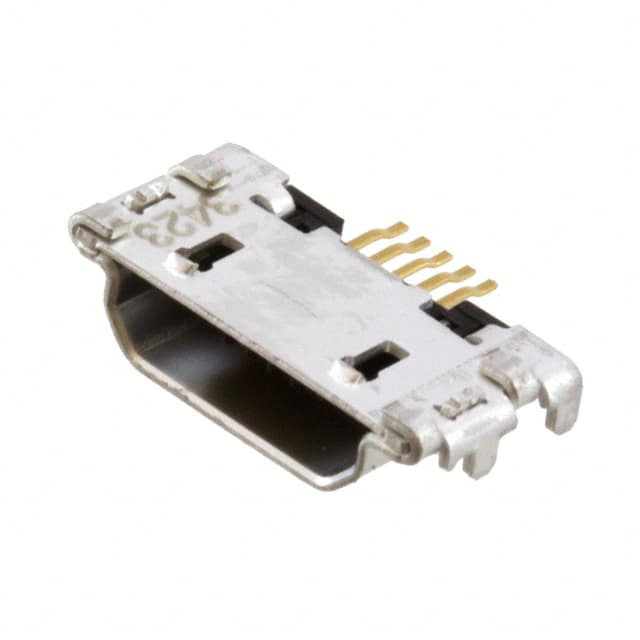

The DX4R005JJ7R1500 is a USB 2.0 compatible Micro B receptacle connector from JAE Electronics' DX4 series. It features 5 contacts arranged in a mid-mount SMD package, designed for automated surface mount assembly with pick-and-place capability. The connector is unshielded and uses solder termination.
Electrical ratings include a maximum current of 1.8A on Vbus and GND contacts, 0.5A on other contacts, and a voltage rating of 30VAC. The contact resistance is 30mOhm max initial, insulation resistance is 1000MOhm min, and dielectric withstanding voltage is 500VAC per minute. The connector is rated for 10,000 mating cycles and operates over -30°C to 80°C.
This mid-mount version is the standard type without a mating area reinforcement plate, making it suitable for applications where space is limited and reinforcement is not required. The shell is made of high-strength stainless steel, and gold plating over palladium-nickel alloy ensures long life and durability.
Packaged in tape and reel with 1500 units per reel, the DX4R005JJ7R1500 is ideal for high-volume production. It is RoHS compliant as verified in the datasheet.
The Vbus and GND contacts are rated for 1.8A DC maximum, while the other contacts are rated for 0.5A DC maximum.
The voltage rating is 30 VAC RMS.
The connector uses a mid-mount surface mount (SMD) mounting type, horizontal orientation.
It has 5 contacts.
The operating temperature range is -30°C to 80°C.
It is rated for 10,000 mating cycles.
No, the connector is unshielded.
