| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage |

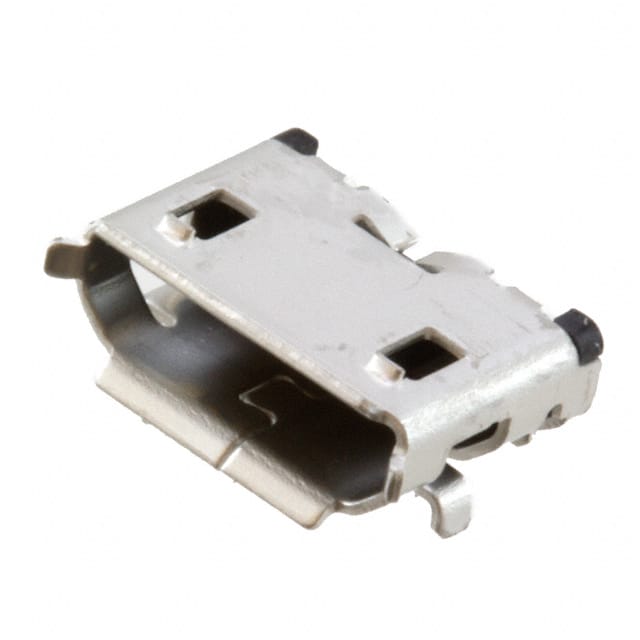

This USB 2.0 Micro-B receptacle connector from JAE Electronics is designed for surface mount right angle assembly. It features 5 contacts in a single port, with a voltage rating of 30V and dual current ratings of 0.5A and 1.8A. The connector is unshielded and supports 10,000 mating cycles over an operating temperature range of -30°C to 80°C. Pick and place and solder retention features enable efficient automated manufacturing. The horizontal mounting orientation makes it suitable for compact PCB layouts in consumer electronics and portable devices.
USB 2.0 Micro-B receptacle.
5 contacts.
0.5A and 1.8A.
30V.
Surface mount, right angle.
-30°C to 80°C.
10,000 cycles.
