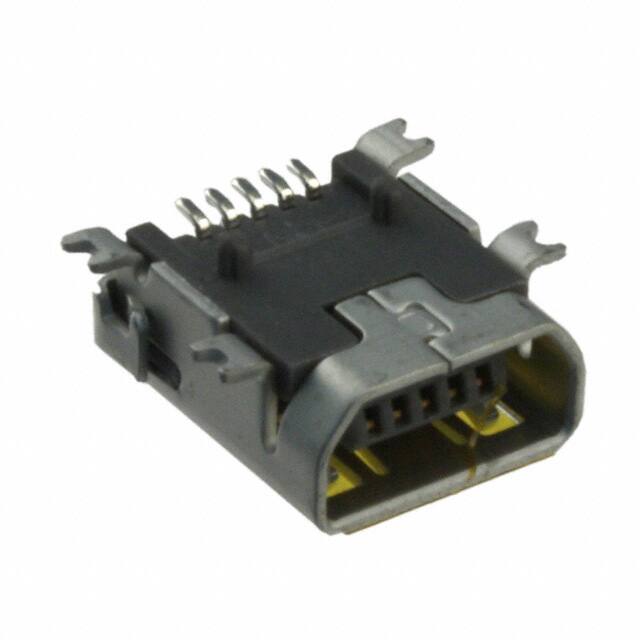

The JAE Electronics DX3R005HN2E700 is a USB 2.0 Mini AB receptacle connector designed for compact, space-constrained applications. It features 5 contacts and supports both USB Mini-A and Mini-B plugs, making it versatile for various device interfaces. The connector is rated for 1A current and 30V, with an operating temperature range of -20°C to 60°C.
This connector uses surface mount, right-angle termination for efficient PCB layout, and includes board guide and solder retention features for reliable assembly. The unshielded design is suitable for internal connections where EMI protection is not critical. With a durability of 5000 mating cycles, it offers robust performance for frequent-use applications.
The rated current is 1 A.
The voltage rating is 30 V.
It supports USB 2.0.
Surface mount, right angle orientation.
It has 5 contacts.
-20°C to 60°C.
