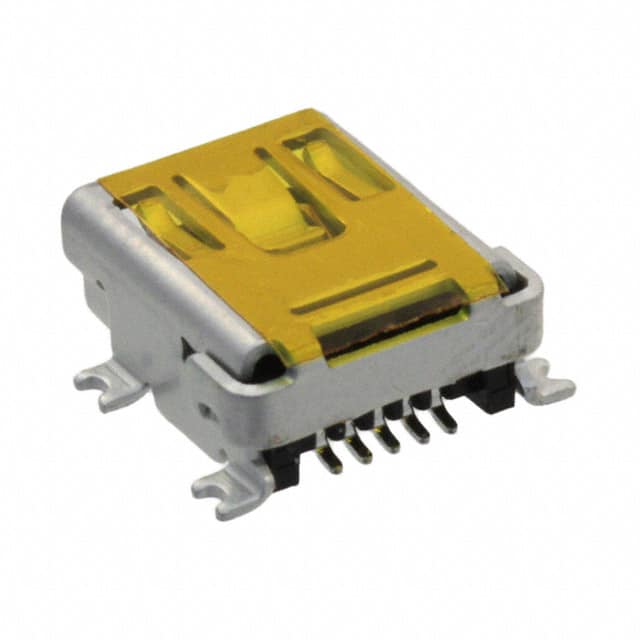

The JAE Electronics DX2R005HN2E700 is a USB 2.0 Mini B receptacle connector designed for reliable data and power connections in compact electronic devices. This connector features a 5-contact configuration with a single port, utilizing a surface mount, right angle termination for efficient PCB assembly.
Key specifications include a USB 2.0 standard interface, rated for 1A current and 30V voltage. The unshielded design incorporates board guide and solder retention features for enhanced mechanical stability during assembly and operation. With a mating cycle durability of 5000 cycles and an operating temperature range of -20°C to 60°C, this connector is suitable for various consumer and industrial applications.
The connector is packaged for surface mount, right angle mounting, ensuring a horizontal orientation on the PCB. While compliance data is unverified, the part is listed as RoHS3, REACH, and MSL 1 compatible.
USB - mini B receptacle.
5 contacts.
1 A.
30 V.
Surface mount, right angle.
USB 2.0.
-20°C to 60°C.
