| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
257 pcs
|
257 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Flange Feature | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style | |
| Type |

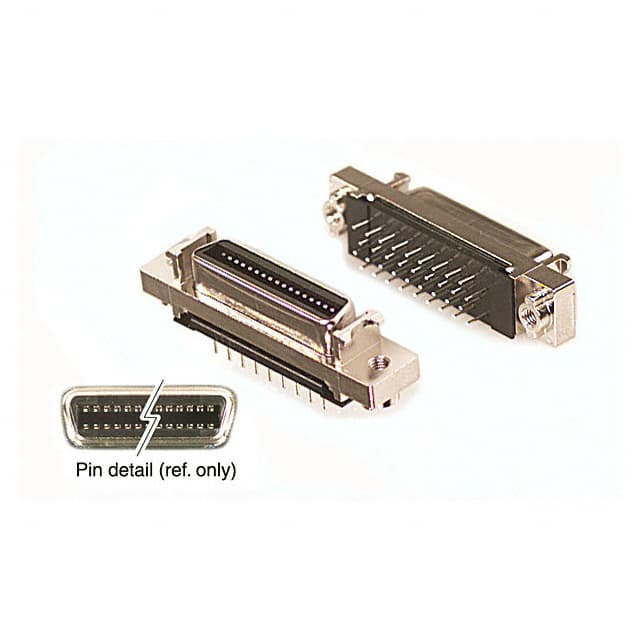

The Hirose Electric DX20M-36S is a 36 position receptacle connector from the DXM series of high-density I/O connectors. It features 2 rows of contacts with a 1.27 mm pitch, designed for space-constrained applications requiring reliable high-density interconnections. The connector uses outer shroud contacts and a bellow contact design for smooth mating and unmating.
The connector is panel mounted with through hole termination for solder attachment. The housing includes a flange feature with M2.6 shell mounting. Contact finish is gold for reliable conductivity and corrosion resistance. The connector style is outer shroud contacts, providing EMI reduction and positive locking.
Typical applications include office automation, computers, measurement equipment, communication and control equipment, factory automation, and home automation. The DXM series is designed for commercial applications needing high density interconnections in a miniaturized and rugged package.
The DX20M-36S has 36 positions arranged in 2 rows.
The pitch is 1.27 mm.
The connector is panel mounted with through hole termination for solder.
The contact finish is gold.
It is a receptacle connector with outer shroud contacts, classified as Miniature High Density (HD).
