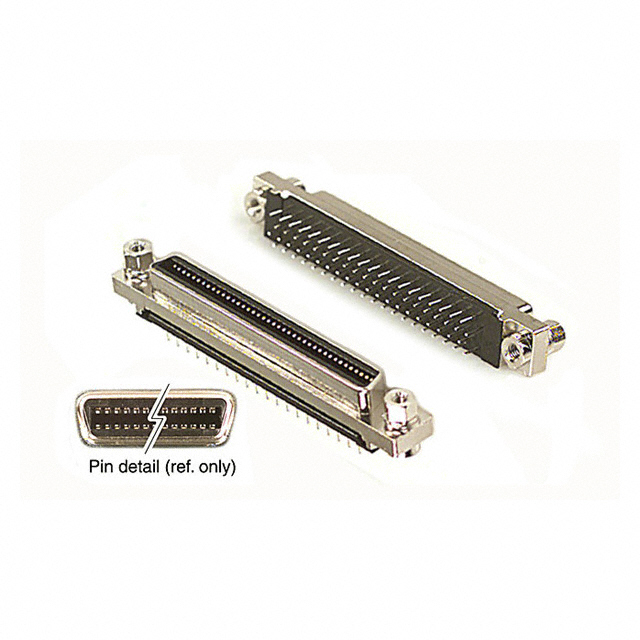

DX20BM-80S Hirose Electric DX20BM-80S is a Miniature High-Density I/O receptacle with 80 positions in 2 rows, 1.27mm pitch, panel mount/through hole, and solder termination.
Mfr Part #:

DX20BM-80S

Available from 1 distributors
Mfr Name: Hirose Electric
Hirose Electric
Hirose Electric DX20BM-80S is a Miniature High-Density I/O receptacle with 80 positions in 2 rows, 1.27mm pitch, panel mount/through hole, and solder termination.
✓ Total Stock: 319 pcs

DX20BM-80S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
319 pcs
On Request
319 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DX20BM-80S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Flange Feature
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Termination
Type
View Similar Products (0)

DX20BM-80S Description

Short technical summary and product information.

The Hirose Electric DX20BM-80S is a Miniature High-Density (HD) I/O receptacle from the DXM series. It features 80 positions arranged in 2 rows with a 1.27mm (0.050 inch) contact spacing, enabling ultra-high-density designs that conserve valuable board space. The connector uses bellow contacts for smooth and precise mating and unmating.



This receptacle supports panel mount and through hole mounting with solder termination. The flange feature includes a mating side female screwlock (M2.6) for secure coupling. Contacts are finished with gold for reliable conductivity. The unique shell design provides first make/last break grounding and overall noise protection.



Typical applications include office automation, computers, measurement, communication and control equipment, factory automation, home automation, and other commercial applications requiring high-density interconnections.

DX20BM-80S Quick Information

Product Type: Centronics Connector
Series: DXM
Canonical Name: Hirose Electric DXM Series Miniature High-Density I/O Receptacle, 80 Positions, 2 Rows, 1.27mm Pitch, Panel Mount/Through Hole, Solder Termination
Subcategory: Centronics Connectors

DX20BM-80S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DX20BM-80S Features

  • 80 positions in 2 rows.
  • 1.27mm pitch for high density.
  • Panel mount and through hole mounting.
  • Gold contact finish for reliability.
  • Female screwlock (M2.6) flange feature.

DX20BM-80S Applications

  • Office automation equipment interconnections.
  • Computer and peripheral data links.
  • Measurement and control systems.
  • Factory and home automation devices.

DX20BM-80S FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the DX20BM-80S have?

The DX20BM-80S has 80 positions arranged in 2 rows.

What is the pitch of the DX20BM-80S connector?

The pitch is 1.27 mm (0.050 in).

What mounting type does the DX20BM-80S use?

It supports panel mount and through hole mounting.

What is the termination method for the DX20BM-80S?

Termination is by solder.

What is the contact finish on the DX20BM-80S?

The contact finish is gold.

Does the DX20BM-80S have a flange feature?

Yes, it has a mating side female screwlock (M2.6) flange feature.
