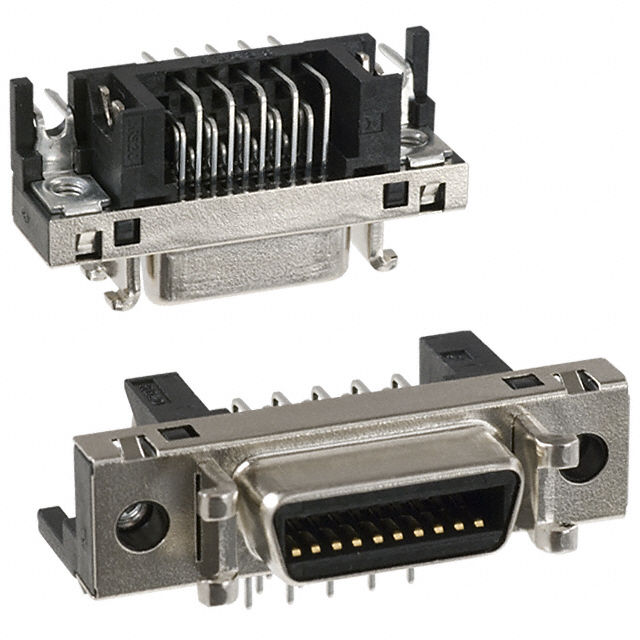

The Hirose Electric DX10GM-20SE is a 20-position receptacle connector from the DXM series of miniature high-density I/O connectors. It features a 1.27mm (0.050") contact pitch and employs bellow contacts for smooth mating and unmating. The connector is designed for right-angle solder termination and supports panel mounting with through-hole fixing. Housing/Shell (M2.6) flange feature and board lock are included for secure mounting.
Electrical characteristics include a current rating of 1A maximum, voltage rating of 250V AC/DC, and contact resistance of 30mΩ maximum. Insulation resistance is at least 1000MΩ at DC 500V, and the connector withstands 500V AC for one minute. The operating temperature range is -55°C to +85°C.
The DXM series is suited for applications requiring high-density interconnections in office automation, computers, measurement, communication, control equipment, factory automation, and home automation. The connector's shell design ensures first make/last break grounding and electromagnetic interference (EMI) reduction. Contact finish is gold for reliability.
20 positions arranged in 2 rows.
1.27mm (0.050 inches).
1A maximum per contact.
250V AC/DC maximum.
Panel mount, through hole, right angle solder.
-55°C to +85°C.
Gold.
