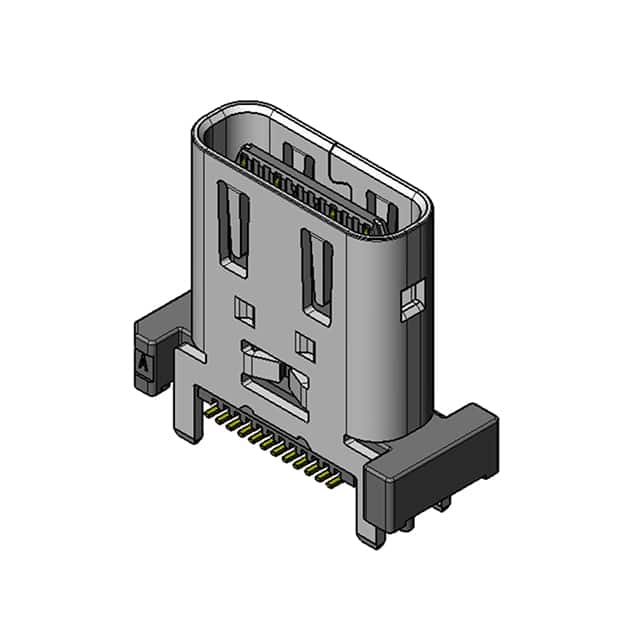

The JAE Electronics DX07S024WJ3R400 is a USB Type-C receptacle connector designed for high-speed data and power delivery applications. It supports the USB 3.2 Gen 2 standard, enabling data transfer rates up to 10 Gbps. The connector features 24 contacts and is rated for a current of 5 A at 20 V AC.
This receptacle is mounted vertically using a surface mount, through-hole termination method, making it suitable for on-board applications. It includes a board guide feature for reliable alignment during assembly. The contacts are finished with gold flash over palladium nickel over nickel plating for durability and reliable signal integrity.
The connector is packaged in embossed tape with a standard quantity of 400 pieces per reel, suitable for automated pick-and-place assembly. It is RoHS and REACH compliant, meeting environmental standards for electronic components.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.35 | $2.35 |
| 10+ | $2.00 | $2.00 |
| 25+ | $1.78 | $1.78 |
| 100+ | $1.70 | $1.70 |
| 400+ | $1.54 | $1.54 |
| 800+ | $1.38 | $1.38 |
| 2,400+ | $1.31 | $1.31 |
| 4,800+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 5 A max.
The rated voltage is AC 20 Vr.m.s.
The mounting type is Surface Mount, Through Hole with a vertical orientation.
It has 24 positions.
It supports USB 3.2 Gen 2 (also known as USB 3.1 Gen 2).
The operating temperature range is -30°C to +85°C.
It is rated for 10,000 mating cycles.
