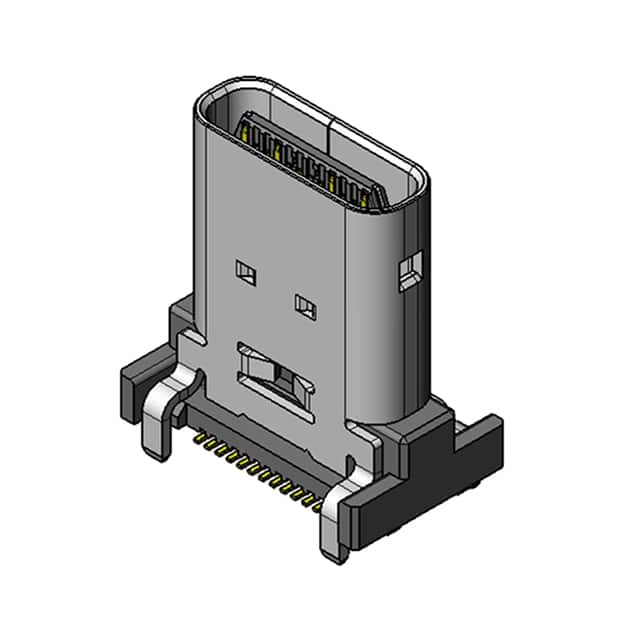

The JAE Electronics DX07S024WJ1R350 is a USB Type-C receptacle connector with 24 positions, designed for high-speed data and power delivery applications. It supports USB 3.2 Gen 2 (also known as USB 3.1 Gen 2) for data rates up to 10 Gbps.
Electrically, the connector is rated for 5 A current and 20 V voltage, enabling power delivery up to 100 W when used with USB PD. It is rated for 10,000 mating cycles, ensuring durability in frequent-use scenarios.
Mechanically, the connector features a hybrid mounting design that combines surface mount (SMD) and through-hole (TH) terminations for robust board attachment. It is mounted vertically and uses solder termination. The connector is unshielded and includes a board guide feature to assist alignment during assembly.
With an operating temperature range of -30°C to 80°C, this connector is suitable for a wide range of consumer electronics, IoT devices, and embedded systems requiring a compact, high-performance USB-C interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.60 | $3.60 |
| 10+ | $3.46 | $3.46 |
| 25+ | $3.17 | $3.17 |
| 50+ | $3.03 | $3.03 |
| 100+ | $2.88 | $2.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 contacts.
5 A.
20 V.
Surface Mount and Through Hole.
USB 3.2 Gen 2 (also known as USB 3.1 Gen 2).
10,000 cycles.
-30°C to 80°C.
