Mfr Part #:

DX07B024JJ3R1600

Name: DX07B024JJ3R1600
Brand: JAE Electronics
SKU: DX07B024JJ3R1600

Mfr Name: JAE Electronics

Description:

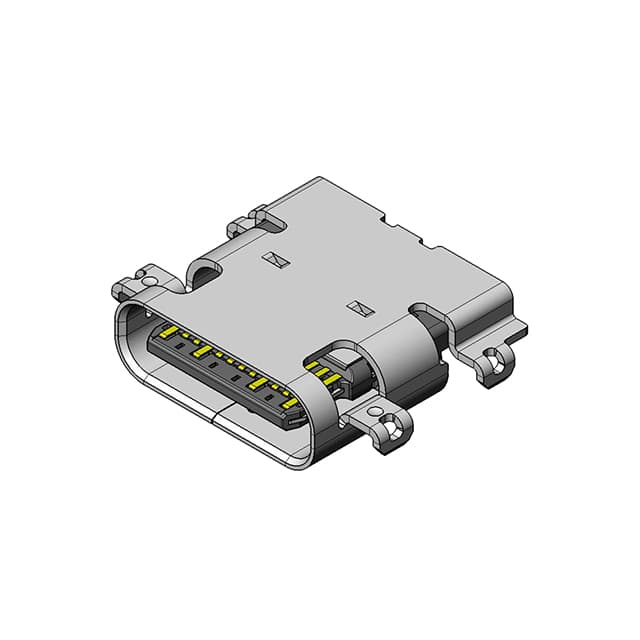

CONN RCP USB3.1 TYPEC 24P SMD RA

Stock on Request

DX07B024JJ3R1600 Description

Short technical summary and product information.

CONN RCP USB3.1 TYPEC 24P SMD RA

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	USB, DVI, HDMI Connector Assemblies
Manufacturer Name	JAE Electronics
Connector Type	USB-C (USB TYPE-C)
Current Rating (Amps)	0.25A, 1.25A
Gender	Receptacle
Mating Cycles	10000
Mounting Feature	Horizontal, Mid Mount
Mounting Type	Board Cutout, Surface Mount, Right Angle; Through Hole
Number of Contacts	24
Number of Ports	1
Operating Temperature	-30°C ~ 80°C
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
Voltage	20V
