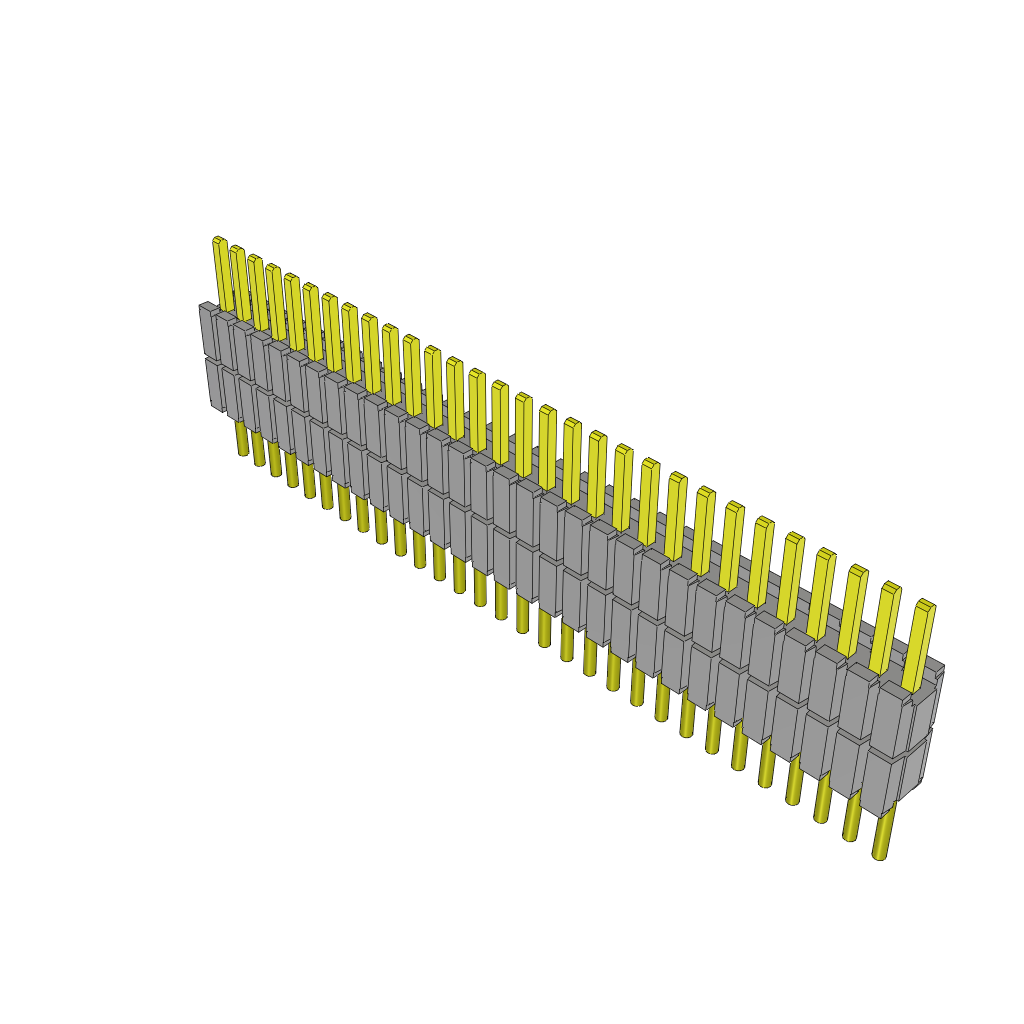

DWM-30-01-G-S-210 The Samtec DWM-30-01-G-S-210 is a flexible micro board stacker with a 1.27mm pitch. It features a vertical orientation and through-hole termination.
Mfr Part #:

DWM-30-01-G-S-210

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec DWM-30-01-G-S-210 is a flexible micro board stacker with a 1.27mm pitch. It features a vertical orientation and through-hole termination.
✓ Total Stock: 2,055 pcs
$ Price Range: $1.00

DWM-30-01-G-S-210 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
2,055 pcs
On Request
2055 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DWM-30-01-G-S-210 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Orientation
Pitch
Prop 65
Tape & Reel
Termination
View Similar Products (0)

DWM-30-01-G-S-210 Description

Short technical summary and product information.

The Samtec DWM-30-01-G-S-210 is a flexible micro board stacker designed for board-to-board applications. It operates with a pitch of 0.050" (1.27 mm) and features a vertical orientation.



The contact system utilizes a 0.018" (0.46 mm) square post. Termination is achieved via a through-hole method. This series offers optional polarization for single or double row designs, supporting up to 100 pins.



Packaged in tubes of 15, this board stacker is halogen-free and compliant with RoHS3 standards. It is not moisture sensitive, rated MSL 1.



This component is suitable for applications requiring flexible stacking solutions where a low profile is beneficial.

DWM-30-01-G-S-210 Quick Information

Product Type: Board Stacker
Series: Flex Stack
Canonical Name: .050" x .100" Flex Stack, Flexible Micro Board Stacker
Subcategory: Board Spacers, Stackers (Board to Board)

DWM-30-01-G-S-210 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected
Lead Free: Yes

DWM-30-01-G-S-210 Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

DWM-30-01-G-S-210 Features

  • 0.050" x 0.100" flexible micro board stacker.
  • Vertical orientation for board stacking.
  • 1.27 mm pitch for compact designs.
  • 0.46 mm square post contact system.
  • Through-hole termination for secure connections.

DWM-30-01-G-S-210 Applications

  • Ideal for flexible board stacking.
  • Suitable for low-profile applications.
  • Used in systems requiring micro-pitch connectors.
  • Supports single or double row designs.

DWM-30-01-G-S-210 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the Samtec DWM-30-01-G-S-210 board stacker?

The pitch of the DWM-30-01-G-S-210 is 1.27 mm.

What type of termination does the DWM-30-01-G-S-210 use?

The DWM-30-01-G-S-210 uses through-hole termination.

What is the contact system size for this board stacker?

The contact system is a 0.46 mm square post.

How is the Samtec DWM-30-01-G-S-210 packaged?

It is packaged in tubes with 15 parts per package.

Is the DWM-30-01-G-S-210 halogen-free?

Yes, this product is halogen-free.
