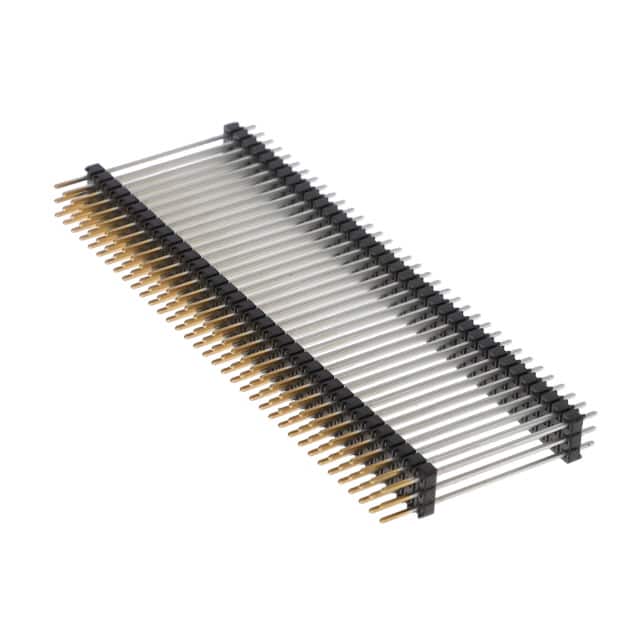

DW-36-14-F-T-1090 The DW-36-14-F-T-1090 is a 108-position, 3-row board stacker header from Samtec with a 2.54mm pitch. It features a through-hole termination with gold flash/tin contacts.
Mfr Part #:

DW-36-14-F-T-1090

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The DW-36-14-F-T-1090 is a 108-position, 3-row board stacker header from Samtec with a 2.54mm pitch. It features a through-hole termination with gold flash/tin contacts.
✓ Total Stock: 1,389 pcs
$ Price Range: $7.23 - $12.45

DW-36-14-F-T-1090 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,389 pcs
On Request
1389 pcs On Request 1 On Request On Request 17+20+22+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DW-36-14-F-T-1090 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Finish Thickness
Contact System
HTS Code
Insulator Height
Lead Spacing
Length
Mounting Type
Number of Positions
Number of Rows
Orientation
Overall Length
Packaging Type
Pitch
Row Spacing
SVHC Present
Tape & Reel
Termination
View Similar Products (0)

DW-36-14-F-T-1090 Description

Short technical summary and product information.

The Samtec DW-36-14-F-T-1090 is a dual insulator strip header designed for elevated board stacking applications. It provides 108 positions arranged in 3 rows with a 2.54mm (0.100") pitch and 2.54mm row spacing. The contact system uses 0.025" (0.635 mm) square posts with a gold flash/tin finish, offering reliable electrical connections. The header has a tail length of 2.794mm (0.110") and an overall length of 36.322mm (1.430in), with an insulator height of 27.686mm (1.090in). It is mounted via through-hole technology and terminated by soldering. The component is packaged in bulk and is RoHS compliant. This series features a Flex Stack design that allows modified post height and body position in 0.005" (0.13 mm) increments for non-standard stacking heights.

DW-36-14-F-T-1090 Quick Information

Product Type: Board Stacker Header
Series: DW
Canonical Name: Samtec DW-36-14-F-T-1090 Dual Insulator Strip Header, 108 Position, 2.54mm Pitch, Through Hole, Gold Flash/Tin
Subcategory: Board Stackers/Spacers

DW-36-14-F-T-1090 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Compliant (Input: REACH Unaffected)
Lead Free: Yes

DW-36-14-F-T-1090 Estimated Pricing

Qty Low High
1+ $12.45 $12.45
10+ $11.99 $11.99
25+ $11.45 $11.45
50+ $10.78 $10.78
100+ $9.39 $9.39
500+ $8.11 $8.11
1,000+ $7.23 $7.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

DW-36-14-F-T-1090 Features

  • 108 position, 3 row board stacking header.
  • 2.54mm (0.100") pitch and row spacing.
  • Through hole mounting with solder termination.
  • Gold flash/tin contact finish for reliability.
  • 0.025" square post contact system.

DW-36-14-F-T-1090 Applications

  • Ideal for elevated board stacking applications.
  • Used in non-standard board stacking height designs.
  • Suitable for through hole PCB header systems.
  • Flex Stack design allows modified post height.

DW-36-14-F-T-1090 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the DW-36-14-F-T-1090 have?

108 positions.

What is the pitch of this connector?

2.54mm (0.100").

What is the mounting type?

Through Hole.

How many rows are there?

3 rows.

What is the tail length?

2.794mm (0.110").

What is the contact finish?

Gold Flash/Tin.

What packaging is available?

Bulk.
