| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact System | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Orientation | |
| Overall Length (OAL) | |
| Packaging Type | |
| Pitch | |
| Plating | |
| Row Spacing | |
| Stacker Height | |
| Tape & Reel | |
| Terminal Material | |
| Termination |

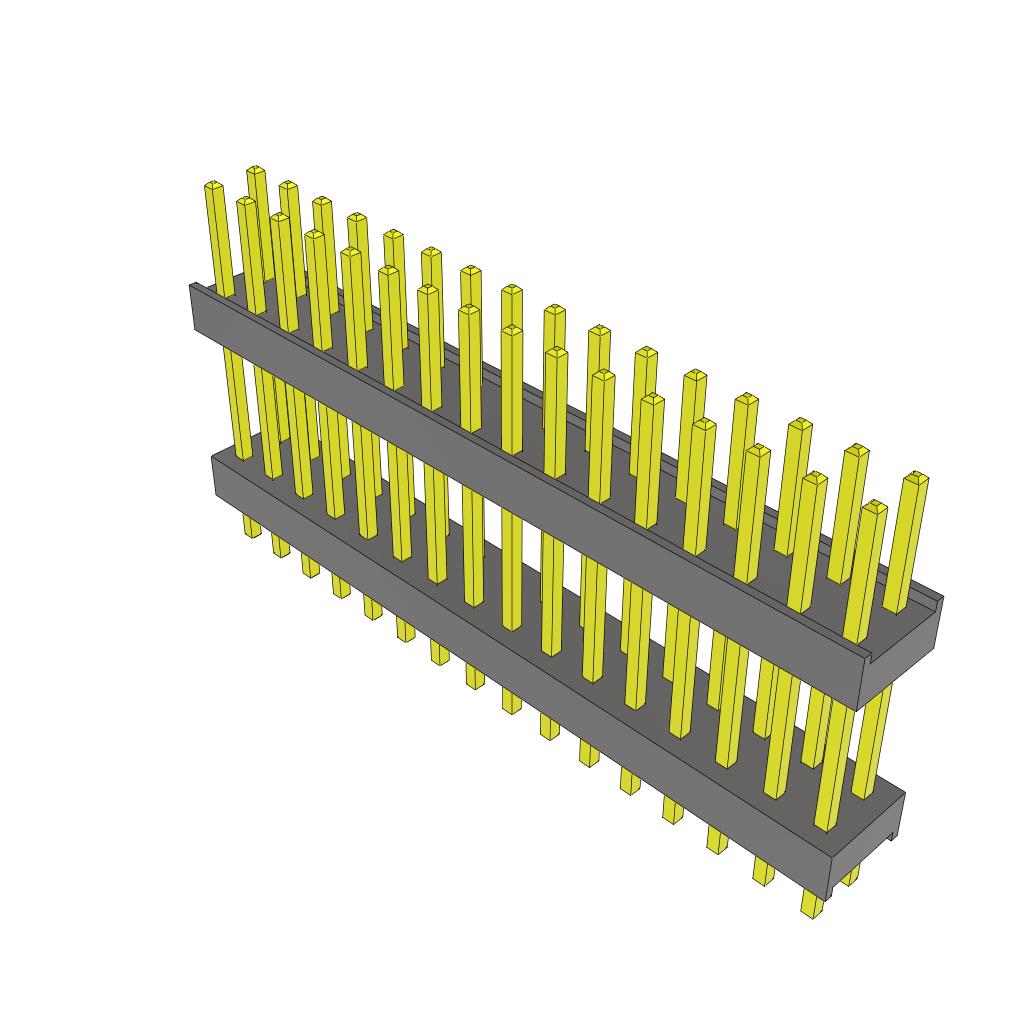

The Samtec DW-16-10-L-D-503 is a flexible board stacking header from the DW series. It provides a 32-position, 2-row configuration with a 2.54mm pitch. The through-hole termination with solder allows for reliable PCB mounting. The header features a 0.025" (0.635mm) square post contact system and is oriented vertically. The insulator is black glass filled polyester, and the terminals are phosphor bronze with 10 µ" gold plating on the contact area and matte tin on the tail. The stacker height is 12.776mm (0.503"), derived from the part number suffix. The overall length (OAL) is 21.08mm (0.830") for lead style 10. This connector is designed for elevated board stacking applications, allowing non-standard board-to-board spacing. It is RoHS3 compliant and has an operating temperature range of -55°C to +125°C with gold plating. The packaging is bulk. Mating connectors include SSW, SSQ, ESW, ESQ, etc.
32 positions.
2.54mm (0.100").
Through hole.
12.776mm (0.503").
-55°C to +125°C with gold plating.
RoHS3 compliant (unverified).
10 µ" (0.25 µm) Gold on contact area, Matte Tin on tail.
