Mfr Part #:

DW-09-10-T-S-600

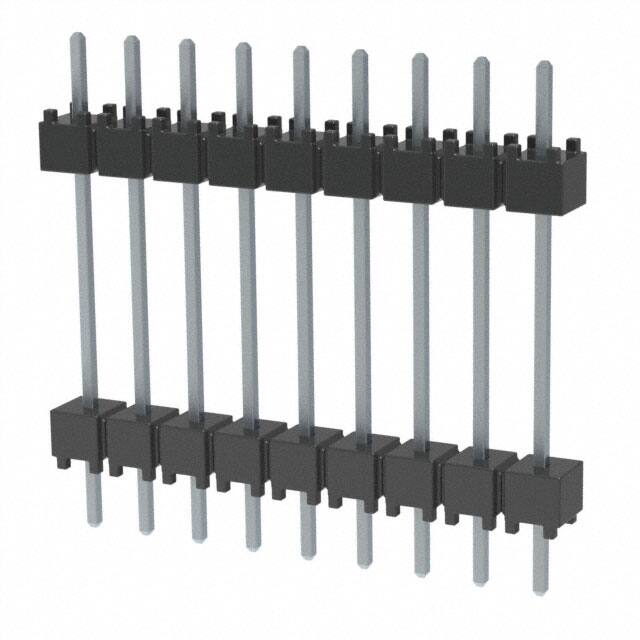

Samtec DW-09-10-T-S-600 is a 9-position board stacker with 2.54mm pitch, through hole mounting, and tin plating. It features a stacker height of 15.24mm and is part of the DW series.

✓ Total Stock: 521 pcs

DW-09-10-T-S-600 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	521 pcs On Request	521 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

DW-09-10-T-S-600 Description

Short technical summary and product information.

The Samtec DW-09-10-T-S-600 is a 9-position board stacker from the DW series, designed for board-to-board stacking applications. It features a single row of contacts with 2.54mm (0.100") pitch, through hole mounting, and solder termination. The contacts are tin plated (matte tin over 50 µ" nickel) on phosphor bronze terminals, housed in a black glass filled polyester insulator. The stacker height is 15.24mm (0.600") with a tail length of 2.794mm (0.110") and an overall length of 21.08mm (0.830"). This part is not lead-free solderable and is intended for lead wave soldering only. The operating temperature range is -55°C to +105°C for tin plating. Suitable for applications requiring reliable board spacing and interconnection.

DW-09-10-T-S-600 Quick Information

Product Type: Board Spacer, Stacker (Board to Board)

Series: DW

Canonical Name: Board Spacer, Stacker (Board to Board) 9 Position 2.54mm Pitch Through Hole Tin

Subcategory: Board to Board

DW-09-10-T-S-600 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

DW-09-10-T-S-600 Features

9 positions in single row arrangement.
2.54mm pitch for standard spacing.
Through hole mounting with solder termination.
Tin plated contacts for cost-effective connectivity.
15.24mm stacker height for board stacking.

DW-09-10-T-S-600 Applications

Board-to-board stacking in electronic assemblies.
Prototyping and development boards.
Industrial control systems requiring reliable connections.
Test and measurement equipment.
General purpose interconnect applications.

DW-09-10-T-S-600 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the DW-09-10-T-S-600 have?

9 positions.

What is the pitch of this connector?

2.54mm (0.100")

What is the mounting type?

Through hole.

What is the stacker height?

15.24mm (0.600")

What is the operating temperature range?

-55°C to +105°C

What is the contact finish?

Tin

What is the tail length?

2.794mm (0.110")

Category	Board Spacers, Stackers (Board to Board)
Manufacturer Name	Samtec Inc.
Color	Black
Contact Finish	Tin
Insulator Material	Black Glass Filled Polyester
Lead Style	Through Hole
Lead-Free Solderable	No
Length	2.794mm (0.110")
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	1
Operating Temperature Range	-55°C to +105°C
Overall Length (OAL)	21.08mm (0.830")
Pitch	2.54mm (0.100")
Plating Specification	Matte Tin over 50 µ" Ni
Stacker Height	15.24mm (0.600")
Tail Length	2.794mm (0.110")
Tape & Reel	No
Terminal Material	Phosphor Bronze
Termination	Solder
