| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Tape & Reel | |
| Voltage | |
| Width |

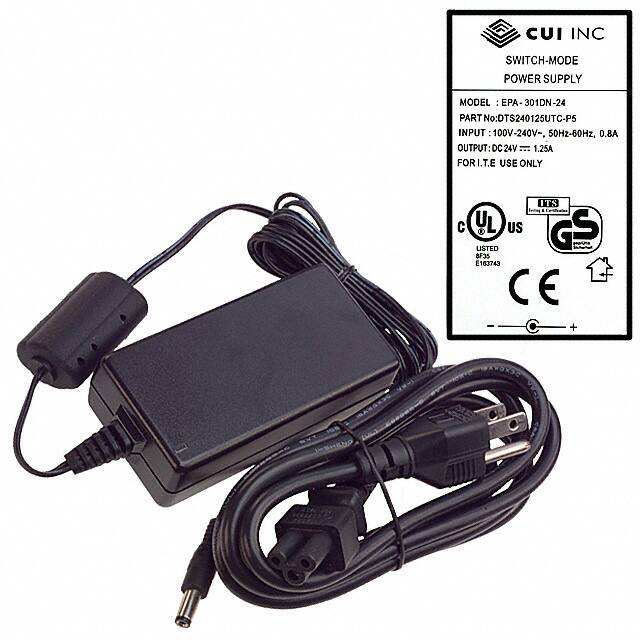

The CUI Inc. DTS240125UTC-P5P is a 30W AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 24V DC output at 1.25A.
This adapter features an IEC 320-C8 input connector and a common barrel plug output with positive center polarization (2.1mm I.D. x 5.5mm O.D. x 12.0mm). The unit operates within a temperature range of 0°C to 40°C and has an efficiency of 60%. Its compact dimensions are 90.0mm x 58.0mm x 28.0mm.
Compliance is indicated by CE, cULus, and GS approvals. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1. The adapter consumes a maximum of 100mW at no load.
The input voltage range is 100-240 VAC.
The output is 24 VDC at 1.25 A.
The output power is 30 W.
The adapter is a Desktop (Class II) unit.
The operating temperature range is 0°C to 40°C.
It uses an IEC 320-C8 input connector.
It is approved to CE, cULus, and GS standards.
