| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Voltage | |
| Width |

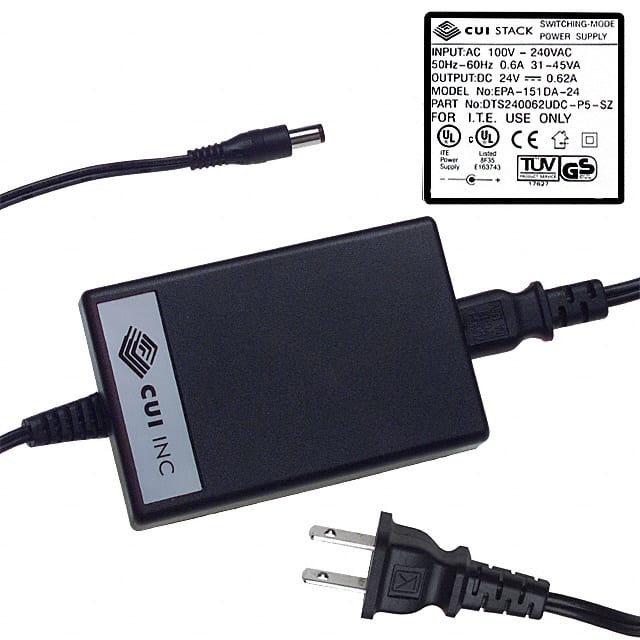

The CUI Inc. DTS240062UDC-P5P is an AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a 24V output at 15W, with a current rating of 620mA.
The adapter features an IEC 320-C8 input connector and a 2.1mm inner diameter x 5.5mm outer diameter barrel plug output with a positive center polarization. Its dimensions are 90.0mm x 58.0mm x 28.0mm.
Operating within a temperature range of 10°C to 40°C, this adapter has an efficiency of 70% and a low no-load power consumption of 100mW maximum. It is classified as Desktop (Class II) and includes a 72-inch (1.83m) cord.
Compliance includes CE and cULus approval agencies. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1 Unlimited.
24V
620mA
15 W
70%
IEC 320-C8
Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm
10°C ~ 40°C
