| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| HI-POT | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Storage Temperature | |
| Voltage | |
| Width |

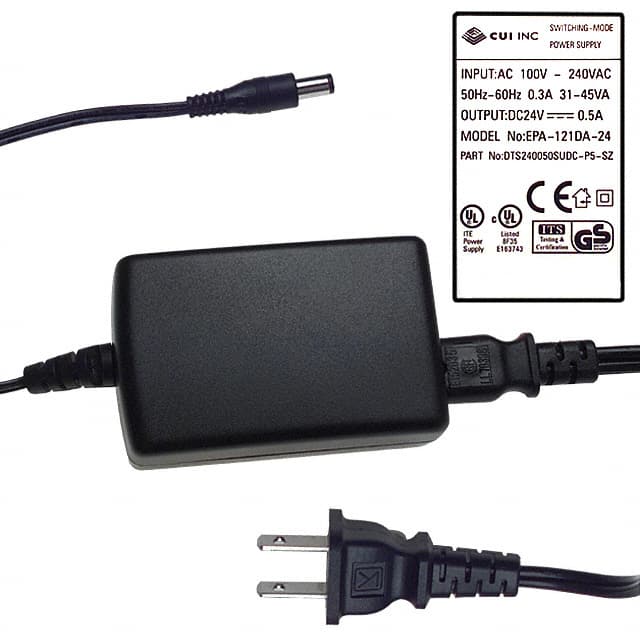

This CUI Inc. switching power supply, part number DTS240050SUDC-P5P-SZ, provides a reliable 24V dc output at up to 0.5A, delivering a total of 12W of power. Designed for ITE (Commercial) applications, it features a wide input voltage range of 90-264V ac and operates at a rated frequency of 50-60 Hz.
The unit boasts a minimum efficiency of 65% and includes essential protections such as over-voltage and short-circuit protection with auto-restart. Safety and EMI standards are met with UL/cUL, S/GS, CE approvals and compliance with FCC class B, CE, and VCCI-II.
With a compact case size of 75mm x 47.5mm x 26.5mm, it utilizes an IEC320-C8 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D.) with positive center polarization. The operating temperature range is from 0°C to 40°C, with storage temperatures from -10°C to +70°C.
It supports an input voltage range of 90-264 V ac (rated 100-240 V ac) at 47-63 Hz.
The output is 24 V dc at 0.5 A (12 W).
The operating temperature range is 0°C to 40°C with 20-80% humidity.
It holds CE, GS, and UL safety approvals.
Yes, it has short circuit protection that shuts down the output and auto-restarts.
It uses a 2.1mm ID x 5.5mm OD barrel plug with positive center polarity. The DC cord length is 1.83 m.
The case size is 75.0 mm L x 47.5 mm W x 26.5 mm H.
