| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| HI-POT | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Width |

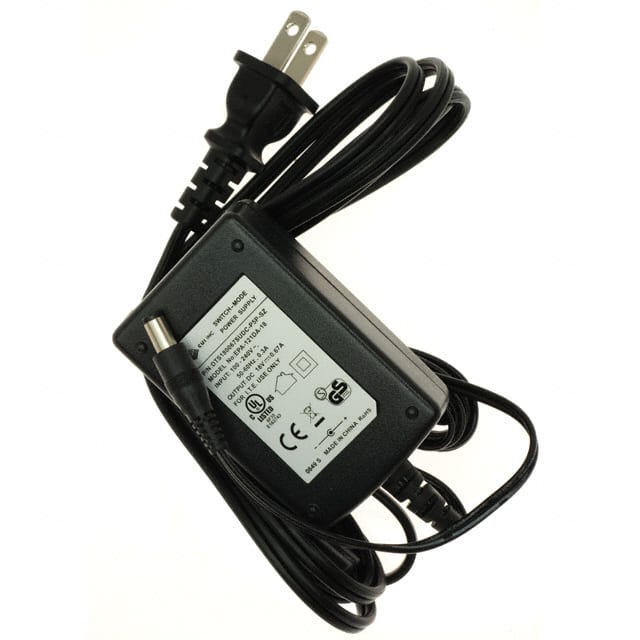

This CUI Inc. switching power supply, model DTS180067SUDC-P5P-SZ, is a desktop adapter designed for ITE (Commercial) applications. It provides a stable 18V DC output at up to 0.67A (12W) with a rated input voltage range of 100V to 240V AC.
The adapter features a minimum efficiency of 65% and includes protections such as over-voltage and short-circuit shutdown with auto-restart. Its input connector is an IEC 320-C8 type, and the output is delivered via a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization.
Operating within a temperature range of 0°C to 40°C, the unit meets stringent safety approvals including UL/cUL, S/GS, and CE. It also complies with EMI standards such as FCC Class B, CE, and VCCI-II, making it suitable for various commercial environments. The dimensions are 75mm x 47.5mm x 26.5mm.
18 V dc at 0.67 A.
90 V ~ 264 V ac.
0°C to 40°C.
Over-voltage protection (18 ~ 21 V dc) and short-circuit protection with output shut down and auto restart.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
72 inches (1.83 m).
