| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Voltage | |
| Width |

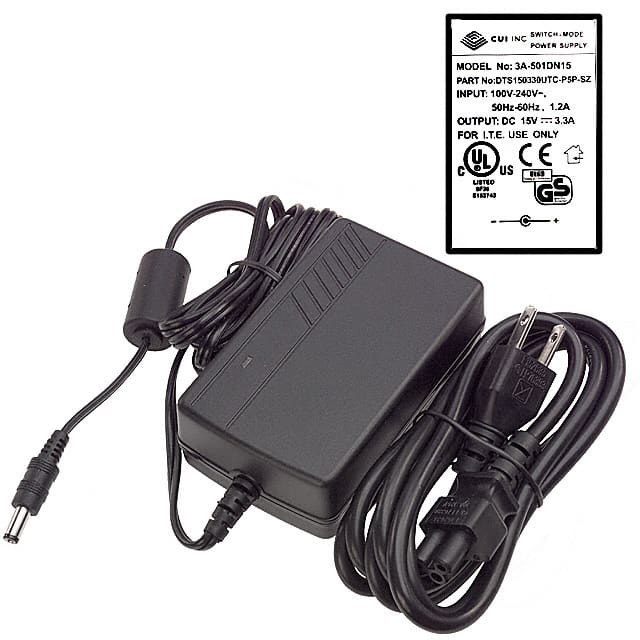

This AC/DC desktop adapter from CUI Inc., model DTS150330UTC-P5P-SZ, delivers 50 watts of power with a 15V output at a maximum current of 3.3A. It operates within an input voltage range of 90 to 264 VAC and features an efficiency of 70%.
The adapter is suitable for ITE (Commercial) applications and operates reliably within a temperature range of 0°C to 40°C. It includes an IEC 320-C6 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The unit has a cord length of 72 inches (1.83m).
With dimensions of 108.0mm x 66.0mm x 36.1mm, this Class I desktop adapter is approved by CE, cULus, and SEMKO. Its RoHS3 compliant status and Level 1 MSL rating indicate adherence to environmental and handling standards.
The adapter provides a 15V output voltage at a maximum current of 3.3A.
This AC/DC adapter has a power rating of 50W.
The adapter accepts an input voltage range of 90 to 264 VAC.
The operating temperature range for this adapter is 0°C to 40°C.
It uses a barrel plug output connector with dimensions 2.1mm I.D. x 5.5mm O.D. x 9.5mm and positive center polarization.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
