| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Polarization | |
| Power (Watts) | |
| Voltage | |
| Width |

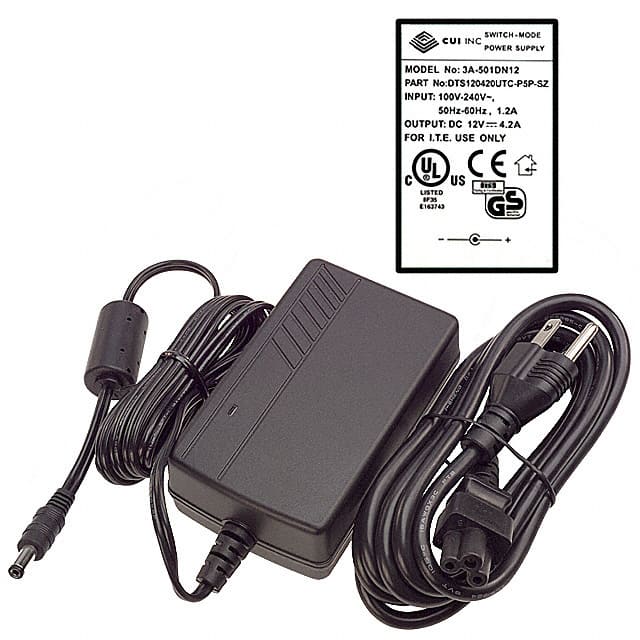

The CUI Inc. DTS120420UTC-P5P-SZ is an AC/DC desktop adapter designed for commercial ITE applications. It delivers a stable 12V output at a maximum current of 4.2A, providing a total power of 50W. The adapter accepts a wide input voltage range from 90 to 264 VAC, making it suitable for global use.
With an efficiency rating of 70%, this adapter operates within a temperature range of 0°C to 40°C. It features a positive center polarization and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm). The input connection is an IEC 320-C6.
The physical dimensions of the unit are 108.0mm x 66.0mm x 36.1mm (4.25" L x 2.60" W x 1.42" H). The cord length is 1.83 meters (72 inches). The adapter is approved by CE, cULus, and SEMKO, indicating compliance with various safety and performance standards.
The adapter provides a 12V output at a maximum current of 4.2A.
The power rating of this adapter is 50W.
The adapter accepts an input voltage range of 90 to 264 VAC.
The operating temperature range is 0°C to 40°C.
It uses a Barrel Plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
The adapter is approved by CE, cULus, and SEMKO.
