| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Voltage | |
| Width |

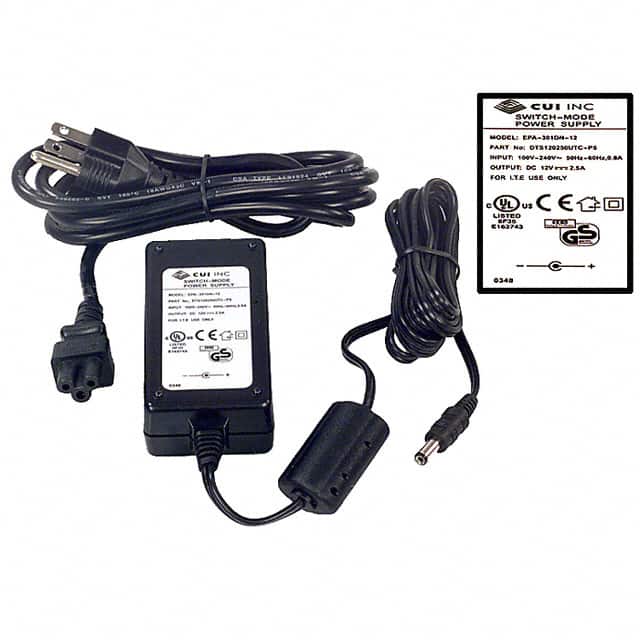

The CUI Inc. DTS120250UTC-P5P is an AC/DC desktop adapter designed for commercial ITE applications. It delivers a stable 12V output with a maximum current of 2.5A, providing a total power of 30W.
This adapter features a wide input voltage range of 90 to 264 VAC, making it suitable for global use. It has an efficiency rating of 70% and a low no-load power consumption of 100mW maximum. The adapter operates within a temperature range of 0°C to 40°C.
Mechanical specifications include dimensions of 90.0mm x 58.0mm x 28.0mm. It utilizes an IEC 320-C6 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm). The cord length is 72 inches (1.83m). The form factor is Desktop (Class II).
Compliance certifications include CE, cULus, and GS. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1.
The DTS120250UTC-P5P provides a 12V output at a maximum current of 2.5A.
The adapter has a power rating of 30W.
The input voltage range is 90 ~ 264 VAC.
The dimensions are 90.0mm in length, 58.0mm in width, and 28.0mm in height.
The adapter operates between 0°C and 40°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
