| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| HI-POT | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Storage Temperature | |
| Voltage | |
| Width |

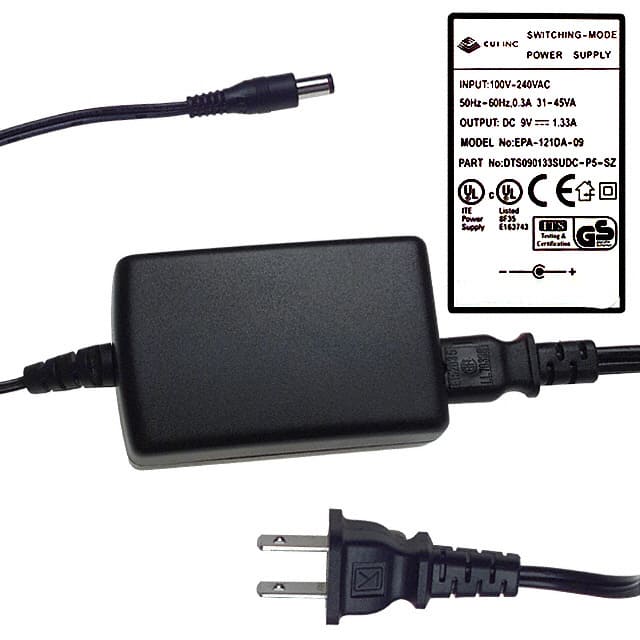

The CUI Inc. DTS090133SUDC-P5P-SZ is a versatile AC/DC desktop switching power supply designed for ITE (Commercial) applications. It operates with a wide input voltage range of 90-264V AC at 50-60 Hz, delivering a stable 9V DC output with a maximum current of 1.33A, providing a total power of 12W.
Key electrical specifications include a line regulation of ±1% and a load regulation of ±5%. The unit features over-voltage protection set between 11.4-12.6V DC and short-circuit protection with auto-restart. It meets FCC Class B, CE, and VCCI-II EMI standards and carries UL/cUL, S/GS safety approvals.
Mechanically, the power supply has a compact case size of 75mm x 47.5mm x 26.5mm. It features an IEC 320-C8 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The attached AC cord has a length of 1.83 meters (72 inches).
Environmental considerations include an operating temperature range of 0°C to 40°C and storage temperatures from -10°C to 70°C. It is RoHS3 compliant and has an MSL rating of 1.
The output voltage is 9V DC and the output current is 1.33A.
The rated input voltage is 100-240V AC, with an input voltage range of 90-264V AC.
The dimensions are 75.0mm in length, 47.5mm in width, and 26.5mm in height.
It uses an IEC 320-C8 input connector.
The operating temperature range is 0°C to 40°C.
