| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Tape & Reel | |
| Voltage | |
| Width |

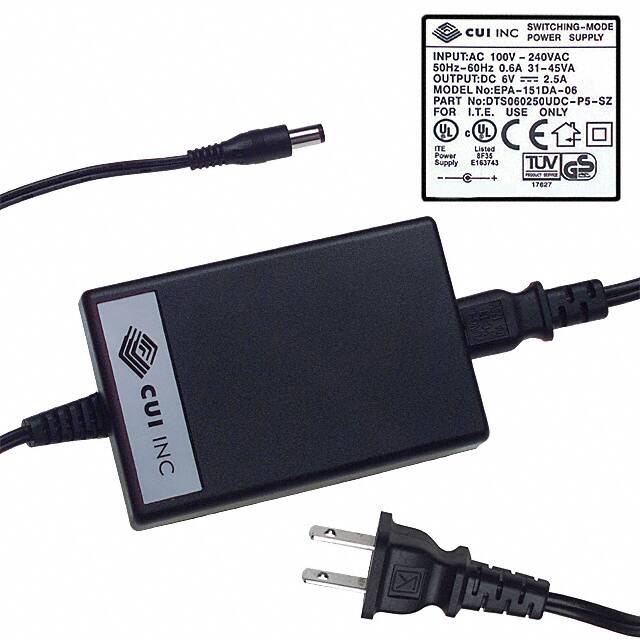

The CUI Inc. DTS060250UDC-P5P is an AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 6V output with a maximum current of 2.5A, providing a total power of 15W. The adapter operates efficiently with a rated efficiency of 65% and features a low no-load power consumption of 100mW maximum.
This unit utilizes an IEC 320-C8 input connector and a standard 2.1mm I.D. x 5.5mm O.D. barrel plug output with positive center polarization. The cord length is 72 inches (1.83m). The adapter is designed for operation in a temperature range of 10°C to 40°C and has a compact desktop form factor (Class II).
Compliance is indicated by CE and cULus agency approvals. The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH status is Unaffected. The input cord is sold separately.
The output voltage is 6V.
The maximum output current is 2.5A.
The power rating is 15W.
The operating temperature range is 10°C to 40°C.
It uses an IEC 320-C8 input connector.
The output connector is a Barrel Plug with 2.1mm I.D. x 5.5mm O.D. and a 12.0mm length.
Yes, it is RoHS3 Compliant.
