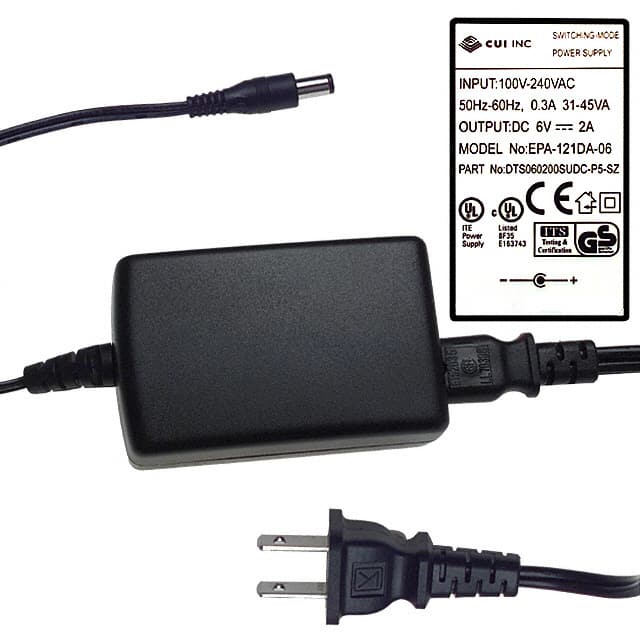

This AC/DC desktop power supply from CUI Inc., part number DTS060200SUDC-P5P-SZ, is designed for ITE (Commercial) applications. It delivers a stable 6V DC output at a maximum current of 2A, providing a total power of 12W.
The unit operates reliably within an input voltage range of 90V to 264V AC and a frequency range of 47Hz to 63Hz. Key electrical specifications include a minimum efficiency of 60%, line regulation of ±1%, and load regulation of ±5%. Over-voltage protection is set between 7.1V and 7.9V DC, and it features short circuit protection with auto restart.
Designed for international use, the power supply has an IEC 320-C8 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. Its physical dimensions are 75.0mm in length, 47.5mm in width, and 26.5mm in height. The operating temperature range is 0°C to 40°C, with storage humidity between 10% and 90% and operating humidity between 20% and 80%.
Safety and compliance standards met include UL/cUL, S/GS, CE, and EMI standards such as FCC Class B, CE, and VCCI-II. It is also RoHS3 compliant and has an MSL rating of 1.
The adapter accepts a universal input of 90-264 V AC (rated 100-240 V AC).
0°C to 40°C.
Barrel plug, 2.1mm ID x 5.5mm OD x 9.5mm, positive center.
Yes, output shut down and auto restart.
60% minimum.
