| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Voltage | |
| Width |

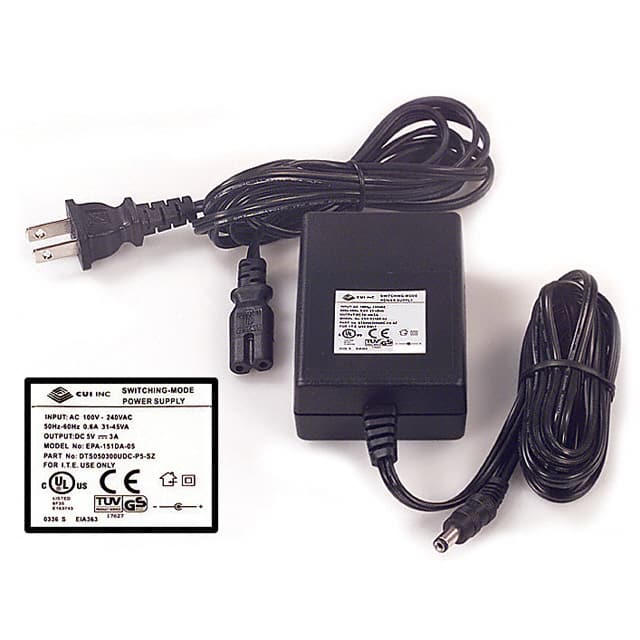

The CUI Inc. DTS050300UDC-P5P is a 15-watt AC/DC desktop power adapter designed for ITE (Commercial) applications. It operates with an input voltage range of 100-240 VAC and delivers a stable 5VDC output at up to 3A.
Key electrical specifications include a 65% efficiency rating. The adapter features an IEC 320-C8 input connector and a common barrel plug output with 2.1mm inner diameter and 5.5mm outer diameter, a 12.0mm length, and positive center polarization. The cord length is 72 inches (1.83m).
Mechanically, the adapter measures 90.0mm in length, 58.0mm in width, and 28.0mm in height. It is designed for desktop use and is classified as Class II. The operating temperature range is from 10°C to 40°C.
Compliance includes CE and cULus agency approvals. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1.
100-240 VAC.
5 VDC at 3 A.
15 W.
65%.
10°C to 40°C.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm, positive center.
CE and cULus.
