| Category | |
| Manufacturer Name | |
| Applications | |
| Average Efficiency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Temperature Coefficient | |
| Voltage | |
| Width |

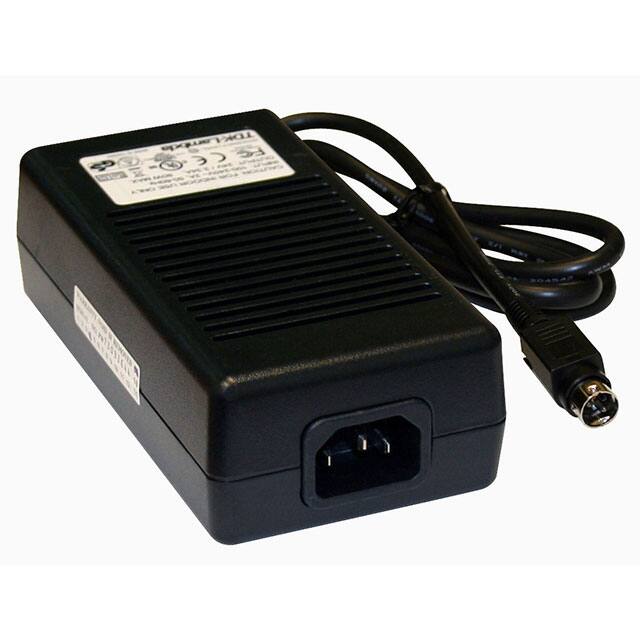

The TDK Corporation DTM65PW480D is a 65W AC-DC external power supply from the DTM65-D series, designed for medical and healthcare applications. This Class I adapter operates with a wide input voltage range of 90-264VAC and provides a stable 48V output at 1.35A.
It boasts an average efficiency greater than 89% and a low no-load power consumption of less than 0.15W, complying with DoE Level VI and EU Tier 2 v5 standards. The unit is certified to IEC/ES/EN/UL/CSA 60601-1 and compliant with EN60601-1-2 (Ed4), making it suitable for diagnostic and monitoring equipment, as well as B and BF rated medical devices.
The DTM65PW480D features an IEC 320-C14 input connector and a 4-pin Power DIN output connector. It operates within a temperature range of -20°C to 60°C and has dimensions of 132.0mm x 69.0mm x 40.0mm. Its robust design and medical certifications ensure reliable power delivery in demanding healthcare environments.
The DTM65PW480D provides a 48V output at 1.35A.
The DTM65PW480D has a power rating of 65W.
The DTM65PW480D meets DoE Level VI and EU Tier 2 v5 standards for efficiency.
The operating temperature range is -20°C to 60°C.
It uses an IEC 320-C14 input connector.
Yes, the DTM65PW480D is certified to IEC/ES/EN/UL/CSA 60601-1 and is suitable for medical and healthcare applications.
