| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

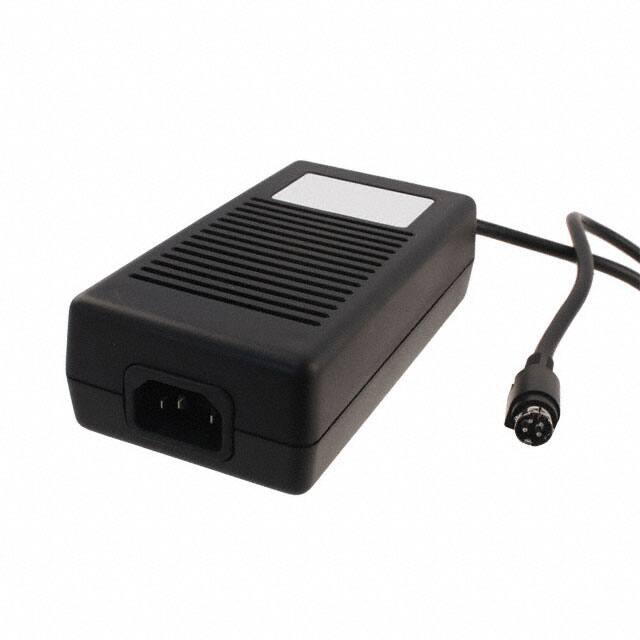

The TDK Corporation DTM65PW240C is an AC/DC desktop adapter designed for various applications, including medical use. It provides a stable 24VDC output at 65W with a maximum current of 2.7A.
This adapter features Level V efficiency, ensuring reduced power consumption. The input connector is an IEC 320-C14, and the output is a 4-pin Power DIN connector. It operates within a temperature range of 0°C to 50°C and has a low no-load power consumption of 500mW maximum.
The unit has dimensions of 132.0mm x 69.0mm x 40.0mm and is classified as a Desktop (Class I) form factor. The input type requires a cord, which is sold separately, and it is designed for international utilization.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. The approval agency is CE.
The DTM65PW240C provides a 24VDC output voltage at a maximum current of 2.7A.
The DTM65PW240C has a power rating of 65W.
The DTM65PW240C meets Level V efficiency standards.
The operating temperature range for the DTM65PW240C is 0°C to 50°C.
The DTM65PW240C uses an IEC 320-C14 input connector.
The DTM65PW240C is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the DTM65PW240C is 1 Unlimited.
