| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

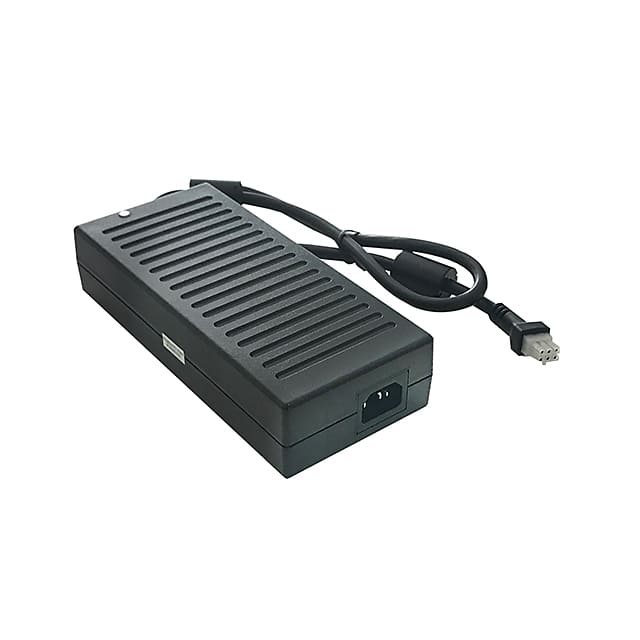

This TDK Corporation DTM250PW120D is a high-performance AC/DC desktop adapter with a power rating of 250W and an output voltage of 12V. It meets Level VI efficiency standards and CoC Tier 2 requirements, ensuring energy savings.
The adapter is designed for demanding applications, including ITE (Commercial) and Medical use. It features an IEC 320-C14 input connector and a Rectangular, 6 Position output connector. The operating temperature range is from -20°C to 60°C, making it suitable for various environments.
With dimensions of 200.0mm x 90.0mm x 44.0mm, this desktop adapter offers a compact yet robust solution. It operates internationally and has a low no-load power consumption of 150mW maximum. The input type is a cord, sold separately, with a cord length of 31.5" (0.8m).
The output voltage is 12V.
The maximum current output is 20.83A.
The power rating is 250W.
It meets Level VI efficiency and CoC Tier 2.
The operating temperature range is -20°C to 60°C.
It has an IEC 320-C14 input connector.
It is suitable for ITE (Commercial) and Medical applications.
