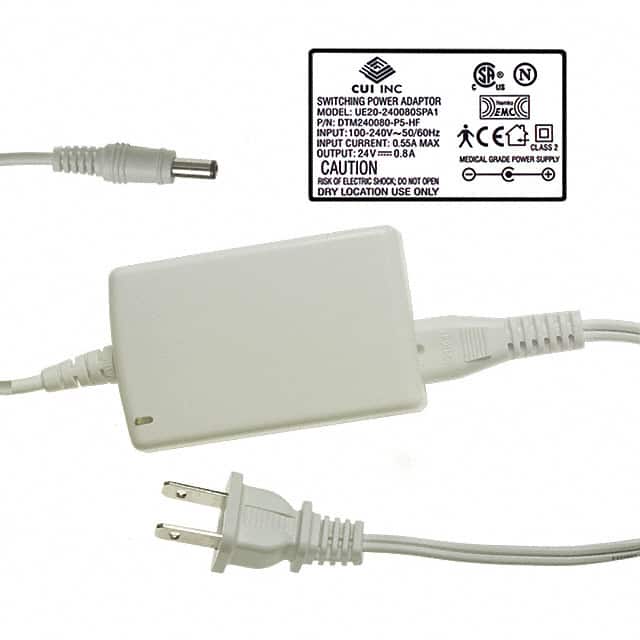

DTM240080UDC-P5-HF The DTM240080UDC-P5-HF is a 19W AC/DC desktop adapter from CUI Inc. providing 24V at 800mA with a barrel plug connector and medical application approval.
Mfr Part #:

DTM240080UDC-P5-HF

Mfr Name: CUI Inc.
CUI Inc.
The DTM240080UDC-P5-HF is a 19W AC/DC desktop adapter from CUI Inc. providing 24V at 800mA with a barrel plug connector and medical application approval.
Stock on Request

DTM240080UDC-P5-HF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Cord Length
Current
Form
Height
Input Connector
Input Type
Input Voltage
Length
Operating Temperature
Output Connector
Polarization
Power (Watts)
Voltage
Width
View Similar Products (0)

DTM240080UDC-P5-HF Description

Short technical summary and product information.

The CUI Inc. DTM240080UDC-P5-HF is a medical-grade AC/DC desktop adapter designed for applications requiring a regulated 24V output. It delivers 800mA (19W) from a universal input of 90 to 264 VAC. The adapter features a barrel plug output connector with 2.1mm inner diameter and 5.5mm outer diameter, polarized positive center. The input connection uses an IEC 320-C6 connector, and the attached cord is 1.2 meters long.



The adapter is housed in a compact desktop enclosure measuring 74.5mm x 46.5mm x 29.0mm. It operates over a temperature range of 0°C to 40°C. The part is RoHS3 Compliant and REACH Unaffected per available data. This adapter is suitable for medical equipment and other applications requiring a reliable 24V DC power source.

DTM240080UDC-P5-HF Quick Information

Product Type: AC/DC Desktop Adapter
Canonical Name: CUI Inc. DTM240080UDC-P5-HF AC/DC Desktop Adapter

DTM240080UDC-P5-HF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DTM240080UDC-P5-HF Features

  • Medical-grade AC/DC desktop adapter.
  • Universal input 90-264 VAC.
  • Output 24V at 800mA (19W).
  • Barrel plug 2.1mm x 5.5mm positive center.
  • IEC 320-C6 input connector with 1.2m cord.

DTM240080UDC-P5-HF Applications

  • Used in medical devices.
  • Provides 24V power for medical equipment.
  • Suitable for desktop medical applications.

DTM240080UDC-P5-HF FAQs

7 frequently asked questions generated from this part’s specifications.
What are the output voltage and current of the DTM240080UDC-P5-HF?

The output is 24V DC at 800mA (19W).

What input voltage range does this adapter accept?

It accepts a universal input of 90 to 264 VAC.

What type of output connector does it have?

It has a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, 9.5mm length, positive center polarity.

What is the operating temperature range?

The operating temperature range is 0°C to 40°C.

Is the DTM240080UDC-P5-HF rated for medical applications?

Yes, this adapter is designated for medical applications.

What is the form factor of this adapter?

It is a Desktop (Class I) adapter.

What input connector does the adapter use?

It uses an IEC 320-C6 input connector.
